Horizontal bottom contact connector
This FRU contains a horizontal bottom contact cable connector. Read the instructions before proceeding.
The horizontal bottom contact connector uses a flip locking actuator to lock the ribbon cable into the Zero Insertion
Force (ZIF) connector. The cable is inserted horizontally into the connector.
Warning—Potential Damage: When opening or closing this type of actuator, gently lift the center of the actuator
using your finger. Do not use a fingernail or screwdriver to open the actuator. This could damage the ribbon cable.
Do not close the actuator from the ends of the actuator.
Removing a cable from the horizontal bottom contact connector
1

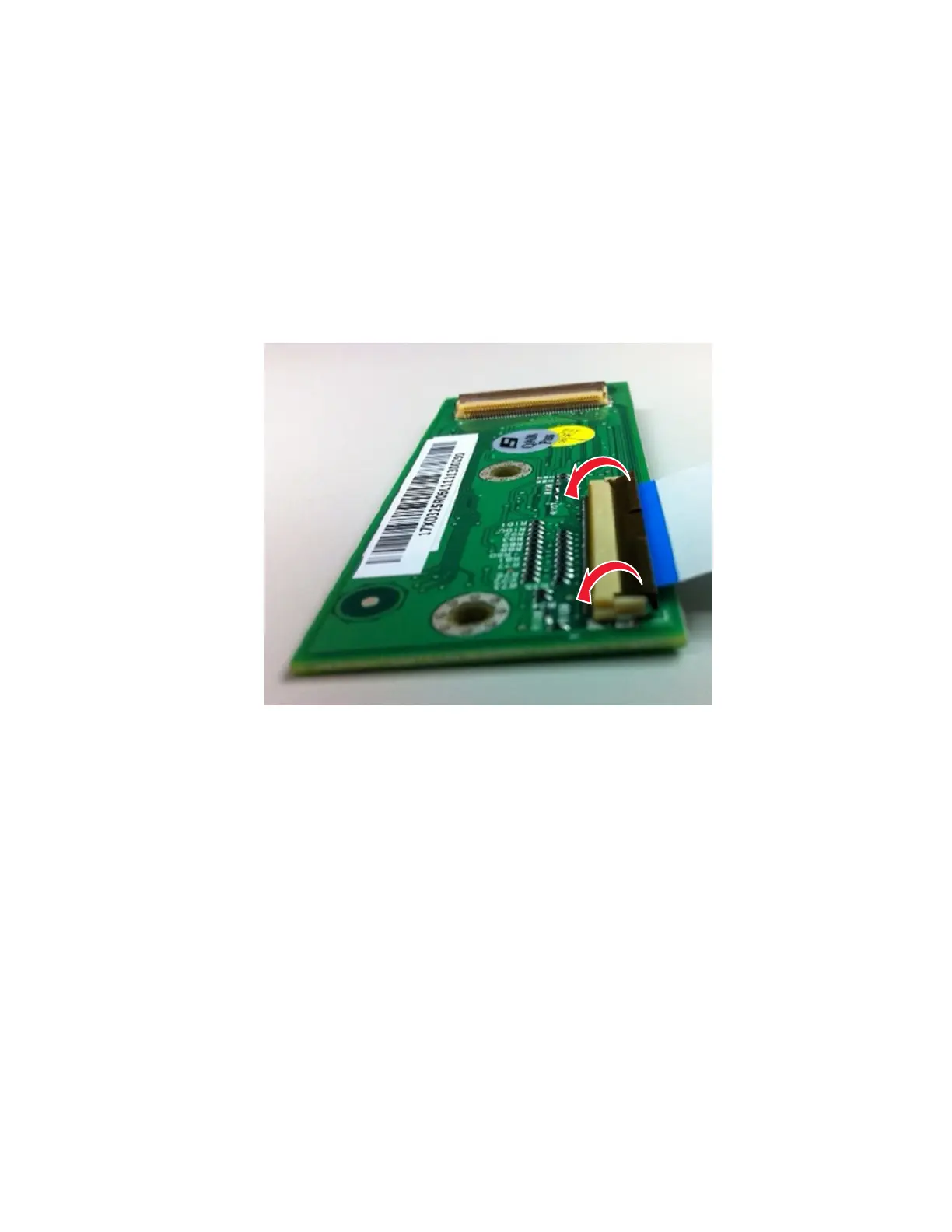

Place two fingers towards each end of the locking actuator, and then gently lift the actuator to the unlocked position.
2 Slide the cable out of the connector.
7463
Repair information
273
