4 Remove the controller PCBA.
Drawer upper interface cable removal
1 Remove the drawer assembly rear cover. See “Drawer assembly rear cover removal” on page 523.
2 Remove the drawer assembly left cover. See “Drawer assembly left cover removal” on page 524.
3 Remove the tray controller PCBA. See “Drawer controller PCBA removal” on page 525.

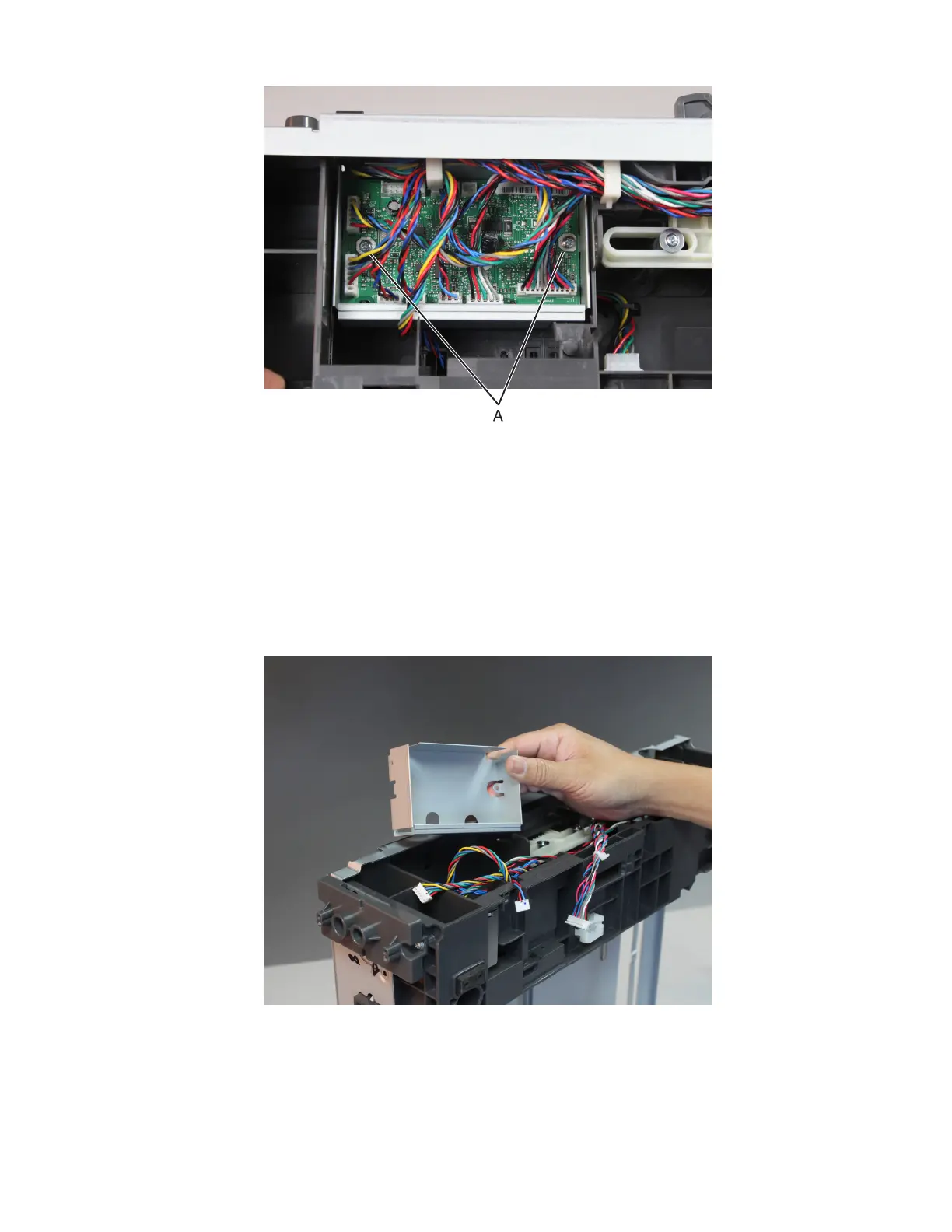

4 Remove the controller PCBA shield.
7463
Repair information
526
