HCIT drawer assembly left cover removal

1 Remove the drawer assembly rear cover. See “HCIT drawer assembly rear cover removal” on page 542.

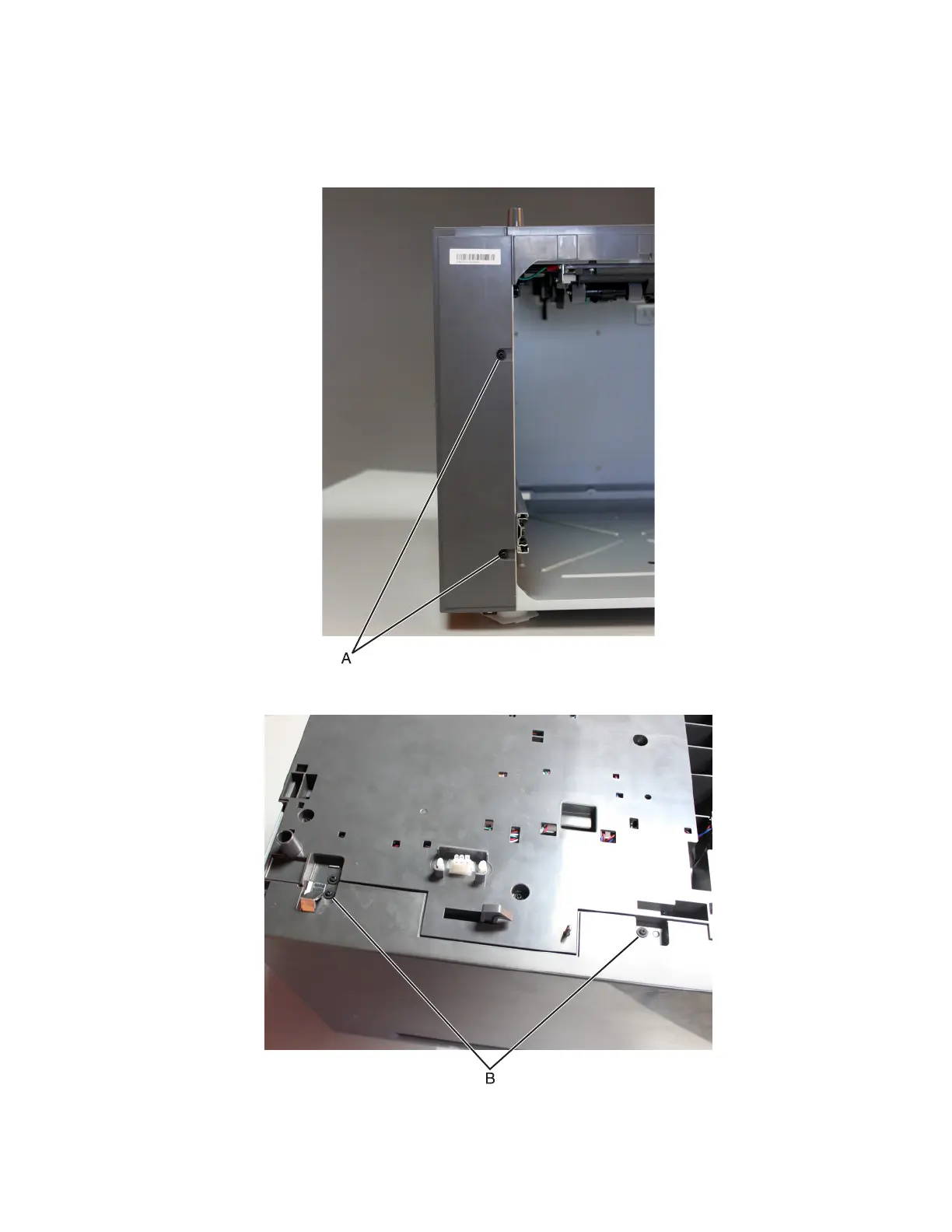

2 Remove the two screws (A) from the front side of the cover.

3 Remove the two screws (B) from the top side of the cover.

7463

Repair information

543
