3 The document sheet is fed at the feed speed corresponding to the selected magnification, and the image on it is
scanned with the exposure lamp at the scan position.
4 As the image is scanned on both sides, the document sheet is fed and ejected by the ADF feed-out roll assembly
and ADF exit roll assembly that are driven by the ADF transport motor.
ADF components

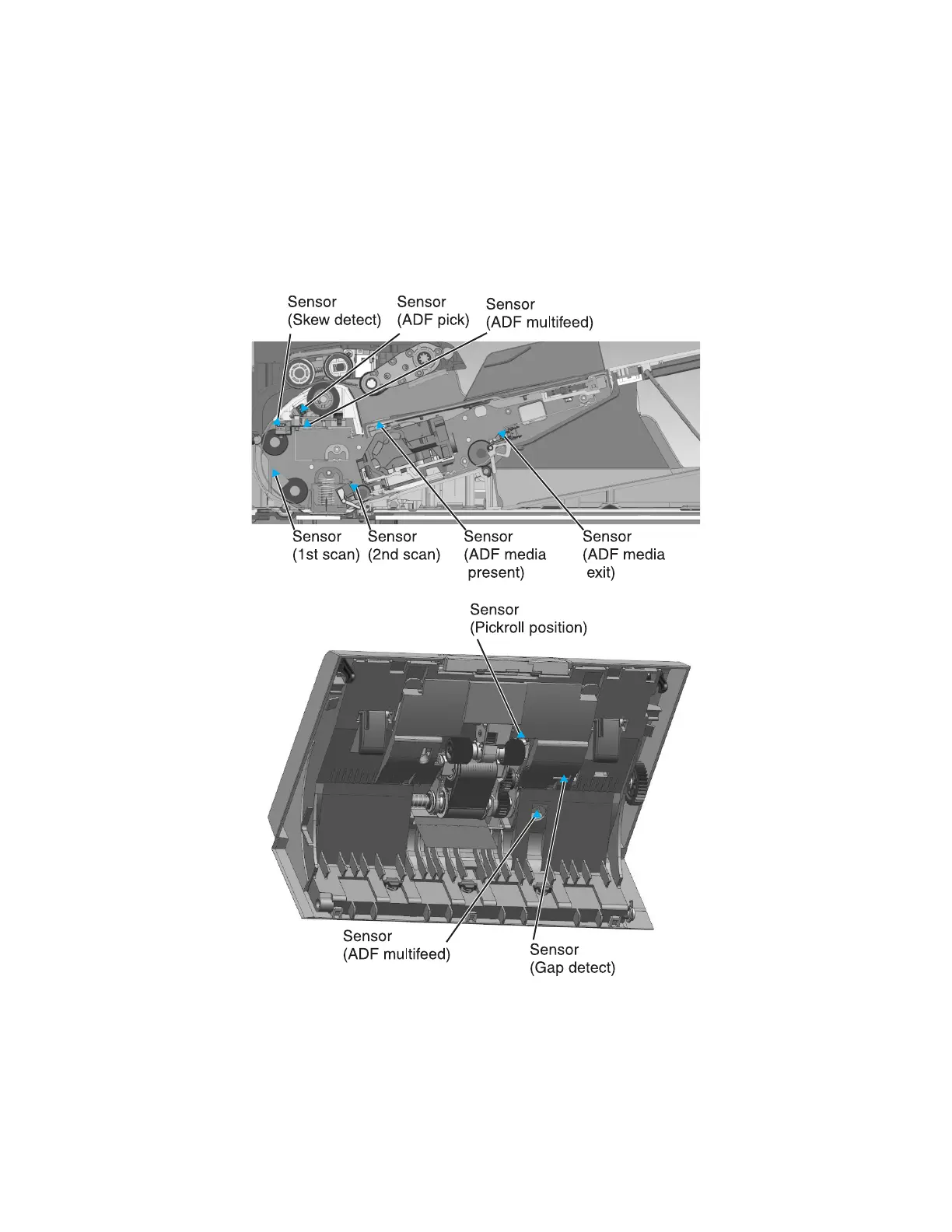

ADF electronic components
7463
Appendix C: Theory of operation
788
