250/550-sheet media tray option removal
Push the latch to unlock the drawer, then lift the printer or drawer above it, and separate.

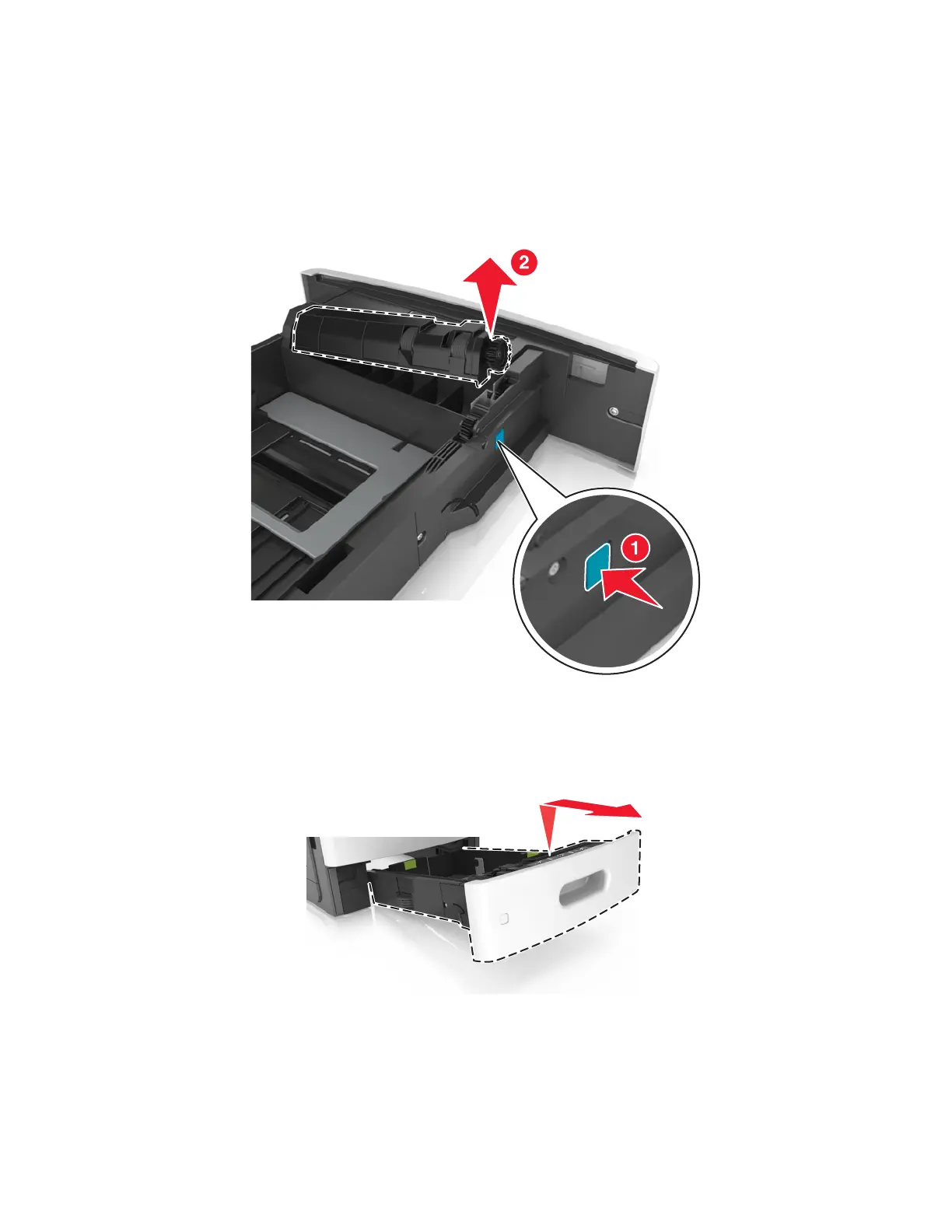

Media tray separation roller removal
Press and hold the button (1), then pull the separation roller (2) and remove.
Media tray assembly removal
Fully extend the tray, then tilt it upward and remove.
7463
Repair information
521
