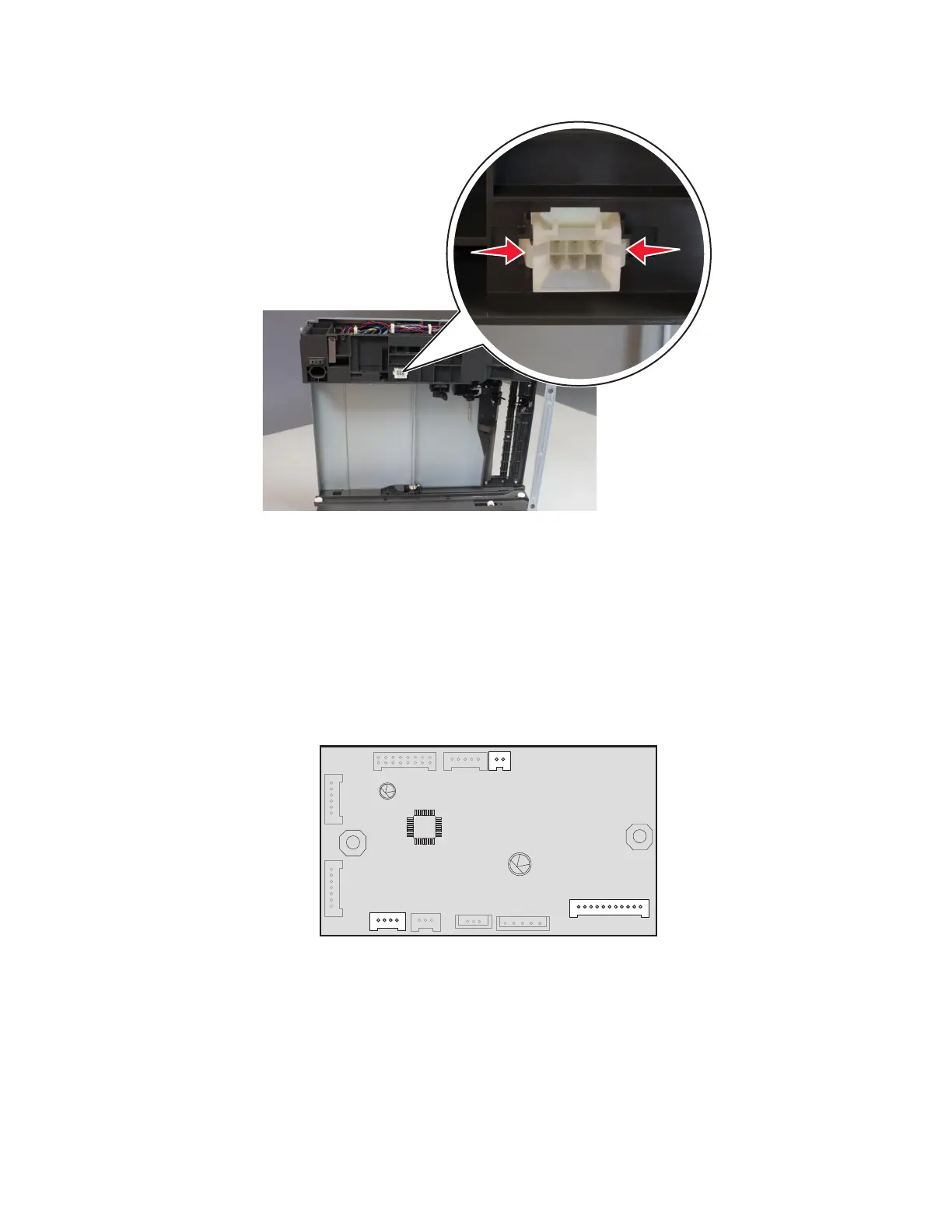

5 Push the tabs inward, then push the connector off its slot.
6 Route the interface cable off the drawer, and remove.
Note: Pay attention to the original routing of the cable.
Drawer media feeder removal
1 Remove the drawer assembly rear cover. See “Drawer assembly rear cover removal” on page 523.
2 Remove the drawer assembly left cover. See “Drawer assembly left cover removal” on page 524.
3 Disconnect the three media feeder cables (J11, J4 and J7) from the controller PCBA.
7463
