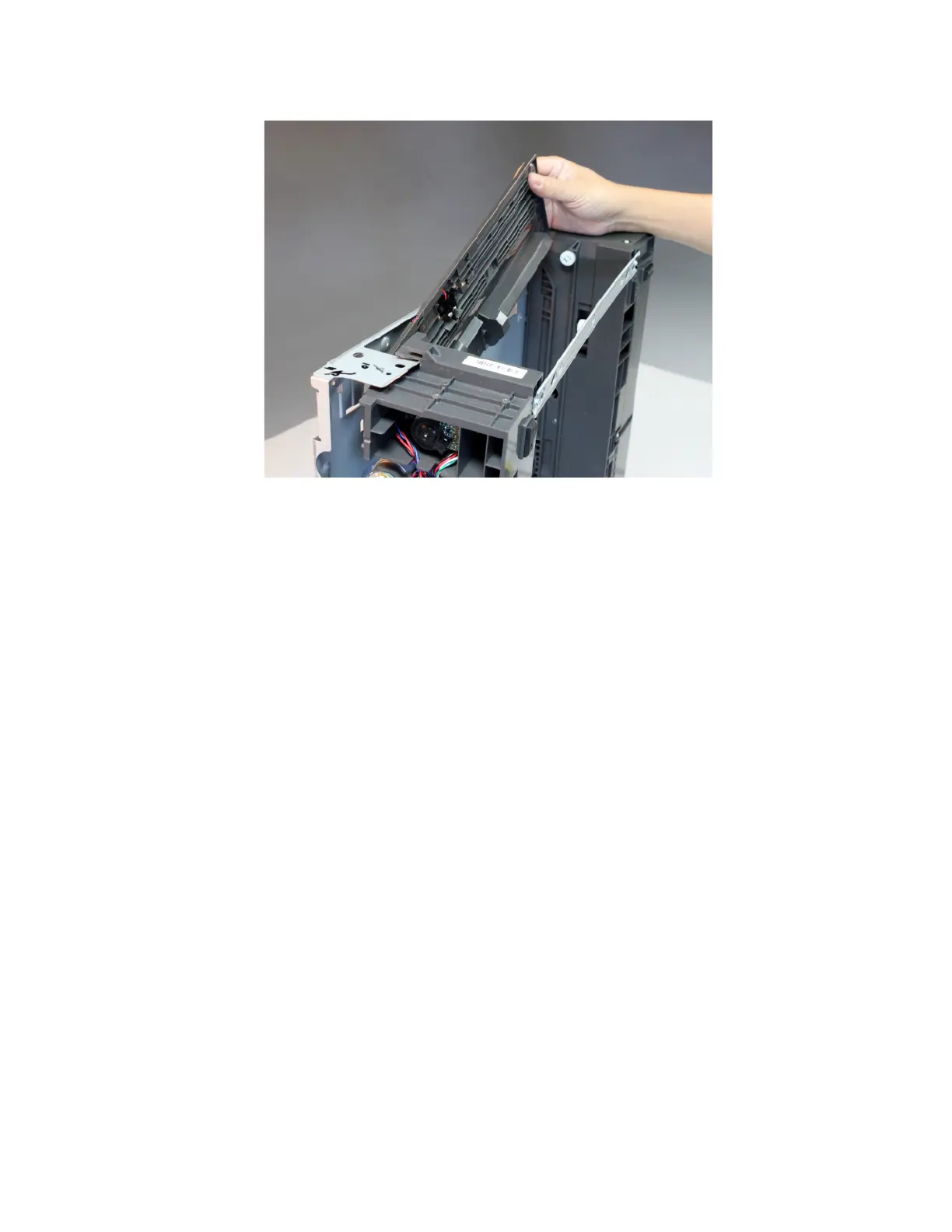

8 To access the cable, lift the left side of the top plate, and pull the sensor assembly away from the drawer.
Note: Pay attention to the original routing of the cable.
9 Route the sensor cable off the drawer, and remove the sensor.
High capacity input tray option removals (MX710 and MX711)
• “HCIT and drawer assembly removal” on page 537
• “HCIT removal” on page 537
• “HCIT drawer assembly removal” on page 537
• “HCIT separator roll assembly removal” on page 538
• “HCIT media guide removal” on page 538
• “HCIT front cover removal” on page 539
• “HCIT pick arm assembly removal” on page 541
• “HCIT drawer assembly rear cover removal” on page 542
• “HCIT drawer assembly left cover removal” on page 543
• “HCIT drawer assembly right cover removal” on page 545
• “HCIT controller PCBA removal” on page 547
• “HCIT top cover assembly removal” on page 548
• “HCIT lift drive motor removal” on page 550
• “HCIT drawer assembly interface cable removal” on page 552
• “Sensor (HCIT media low) with flag removal” on page 553
• “Sensor (pick roll position) removal” on page 554
• “Sensor (HCIT pick) removal” on page 556
• “HCIT media feeder removal” on page 557
7463
Repair information
536
