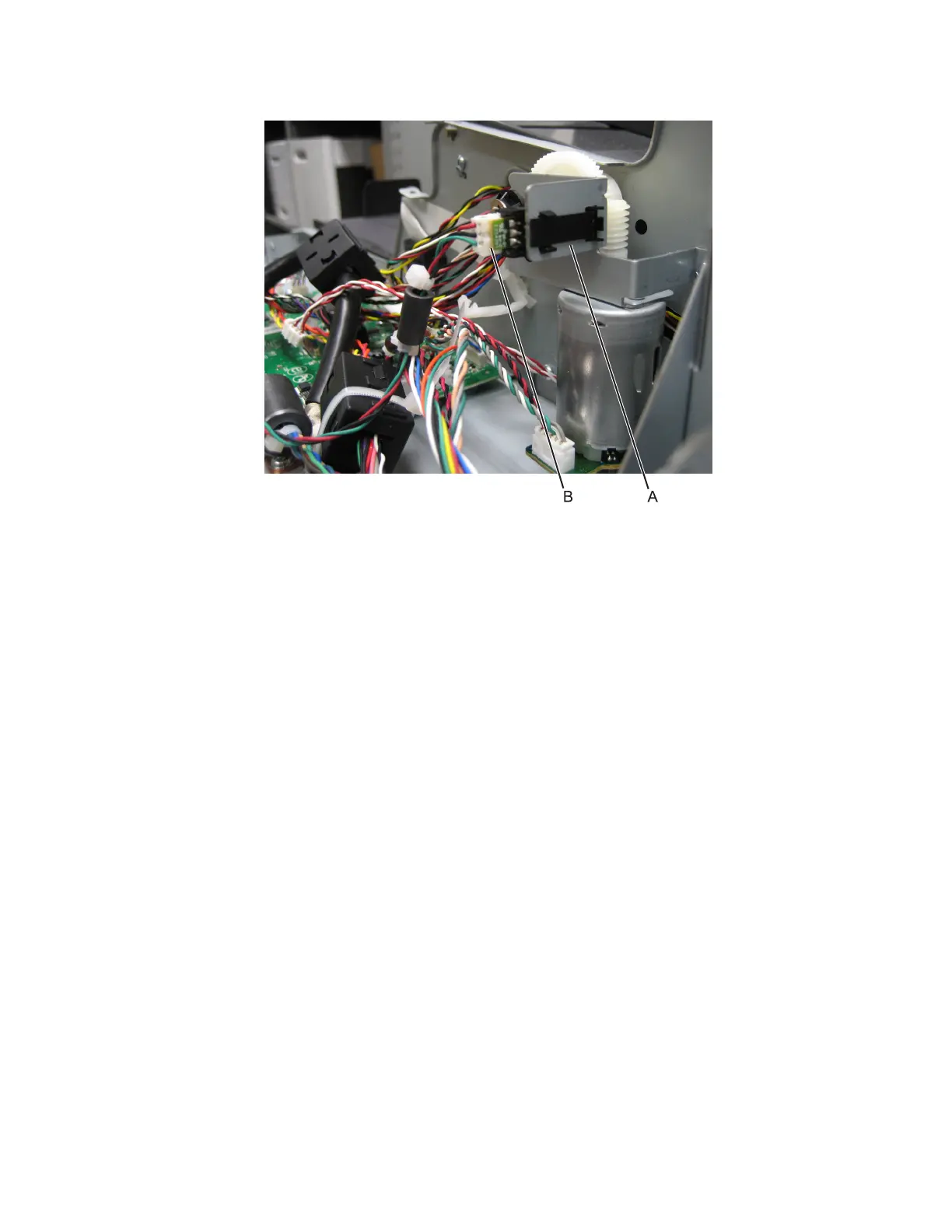

4 Disconnect the cable (A).
Sensor (ADF lower door interlock) removal
1 Remove the ADF front cover. See “ADF front cover removal” on page 459
2 Remove the ADF rear cover. See “ADF rear cover removal” on page 470
3 Remove the ADF input tray. See “ADF input tray removal” on page 461
4 Remove the ADF lift tray. See “ADF lift tray removal” on page 466
5 Remove the ADF input tray. See “ADF input tray removal” on page 461
7463
Repair information
478
