ASSEMBLING THE W INDROWER
3.17 Removing Windrower from Stand
The procedure for removing the windrower from the support stand differs depending on whether you are using a
factory-built stand or a field-constructed stand. Refer to the following procedures according to for your specific stand:
• 3.17.1 Removing Windrower from Factory Stand, page 88
• 3.17.2 Removing Windrower from Field Stand, page 89
3.17.1 Removing Windrower from Factory Stand
1. Move valve handle (A) upwards to slightly raise the
windrower and take load off the lift locks.

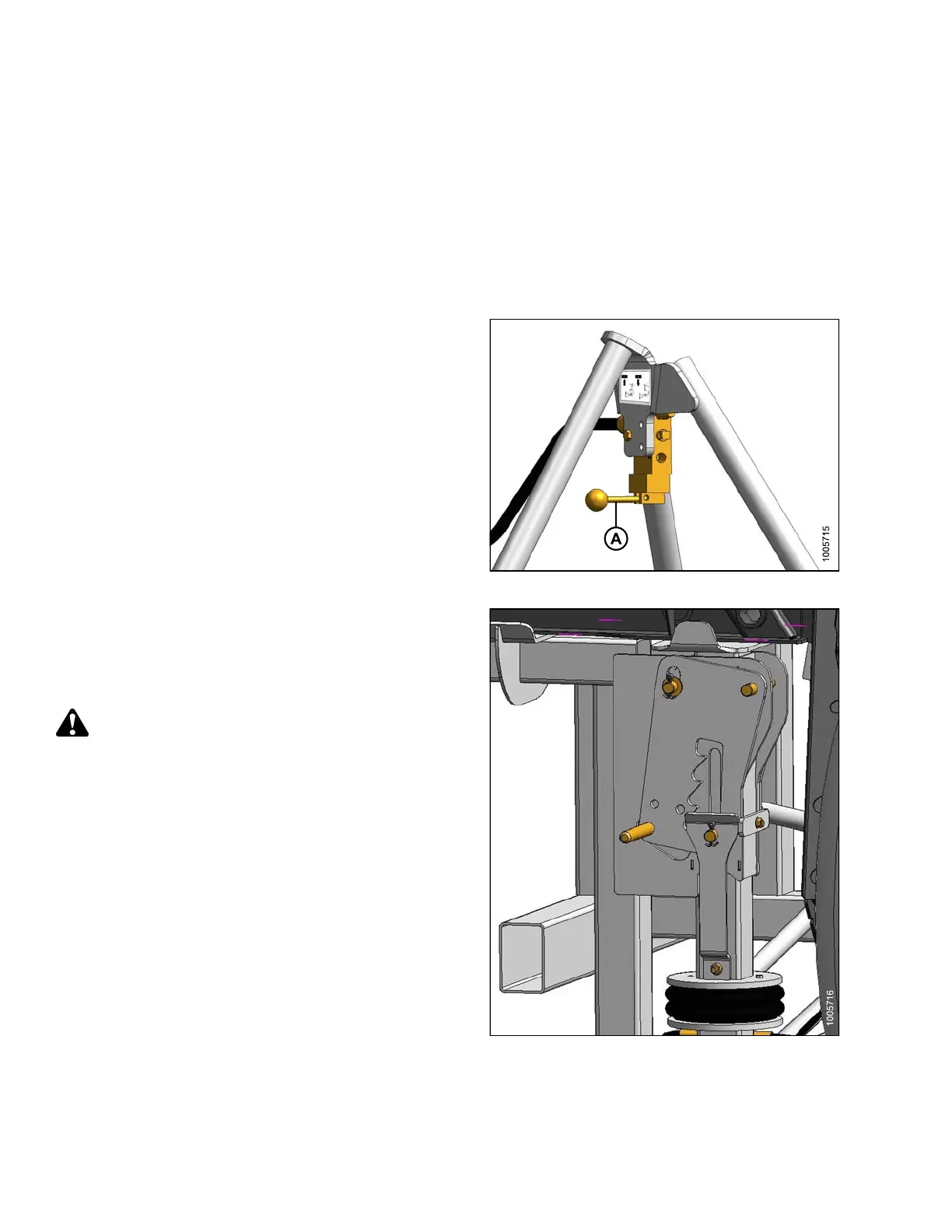

Figure 3
.135: Air Control Valve Tripod
2. Release the lift lock mechanisms (three places) and
turn keeper to keep the lock in the released position.
3. Move the valve handle downwards to slowly release
the pressure from the air bag system and lower the
windrower to the ground.
CAUTION
Ensure all three lifts have fully retracted and
are clear of the windrower frame before driving
windrower ahead.
4. Start the engine and drive the machine straight ahead
leaving the shipping support channels supported on
the rear support stand.
Figure 3.136: Lift System
147962 88 Revision A
