5 Performing Predelivery Checks
Perform all procedures in this chapter in the order in which they are listed.
IMPORTAN T:
The m achine i
s factory-set and should not require further adjustments; however, perform the following checks
to ensure you
r machine operates at maximum performance. Adjustments should be made only if absolutely
necessary a
nd in accordance with the instructions in this m a nual.
5.1 Recording S erial Numbers
Record the windrower and engine se rial numbers on the Predelivery Checklist, page 379.

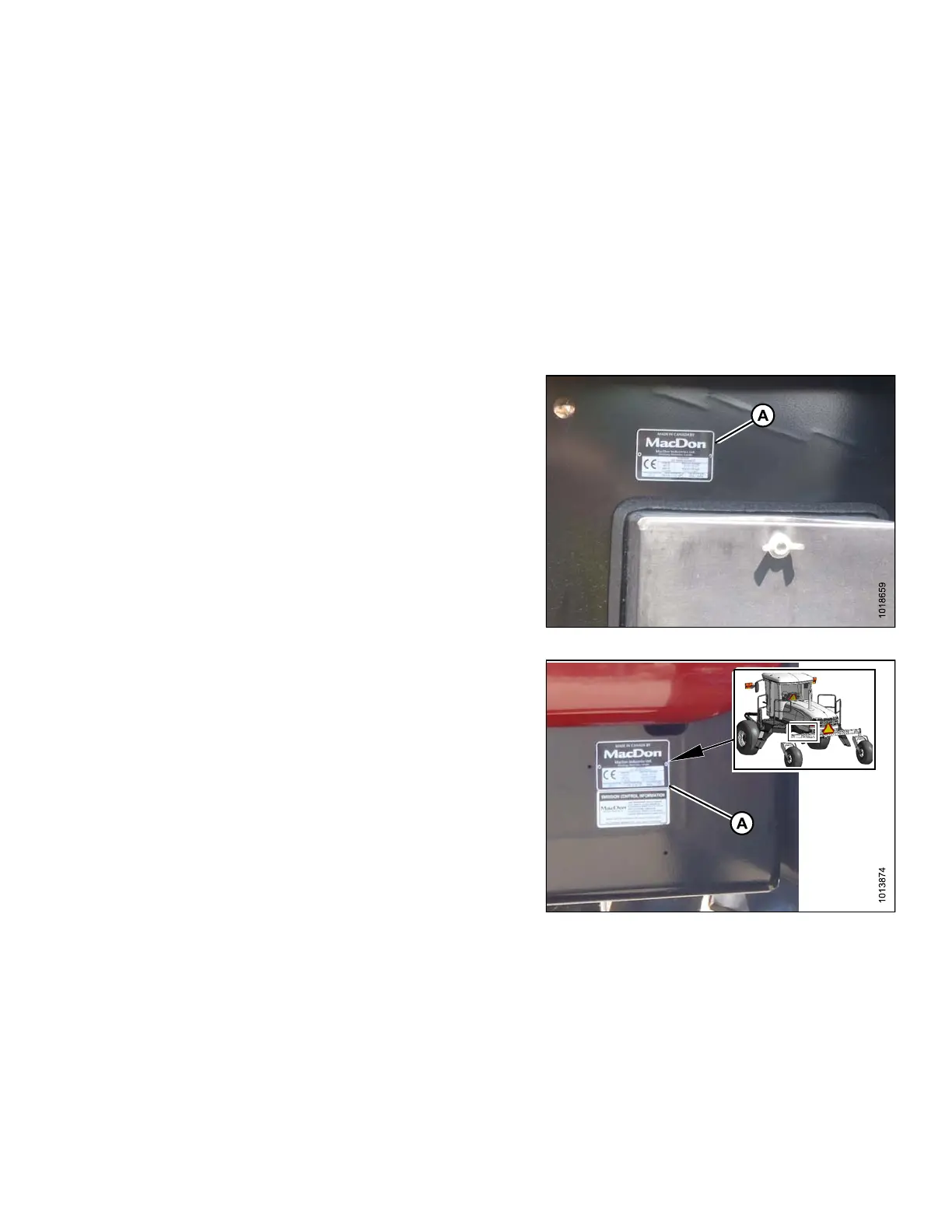

1. The windrower serial number plate (A) is located on
the left sid e of the main frame n ea r the walking beam
as sh own.
Figure 5.1: M105 Serial Number Location
Figure 5.2: M155/M205 Serial Number Location
147962 319 Revision A
