CAB DISPLAY MODULE (CDM)
4.4.20 Cleari
ng Sub-Acres
1. With the key in the ON position, and the operator’s
station in cab -fo rward mode, press SELECT until t he
cab display module (CDM) displays sub-acres on the
bottom line. Then press and hold the PROGRAM (A)
button on the C DM until the sub-acres are cleared.

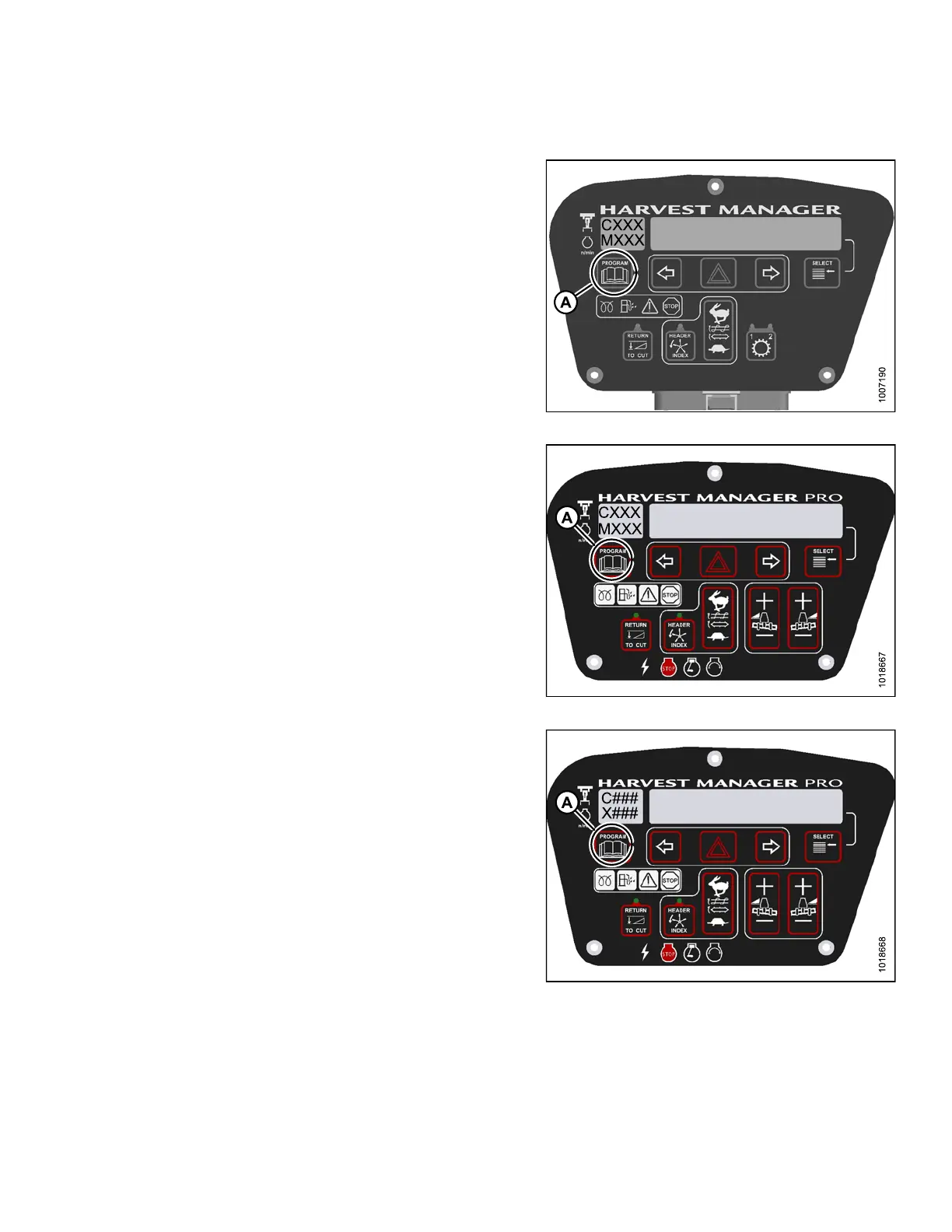

Figure 4.155: M105 C ab Display Module (CDM)
Figure 4.156: M155 C ab Display Module (CDM)
Fig
ure 4.157: M205 Cab Display Module (CDM)
147962
22
1
Revision A
