CAB DISPLAY MODULE (CDM)
4. Press SELECT (D) until AU TO RAISE HEIGHT? is
displayed on the upper line.
• Last measurement is displayed on the lower line.
NOTE:
The auto raise height ranges from 4.0 (minimum)
to 9.5 (maximum), in 0.5 increments. A setting of
10 disables the auto raise function.
5. Press left (B) arrow or right (C) arrow to change
auto-raise height.
6. Press PROGRAM (A) to ex it Programming Mode or
press SELECT (D) to proceed to next WINDROWER
SETUP action.

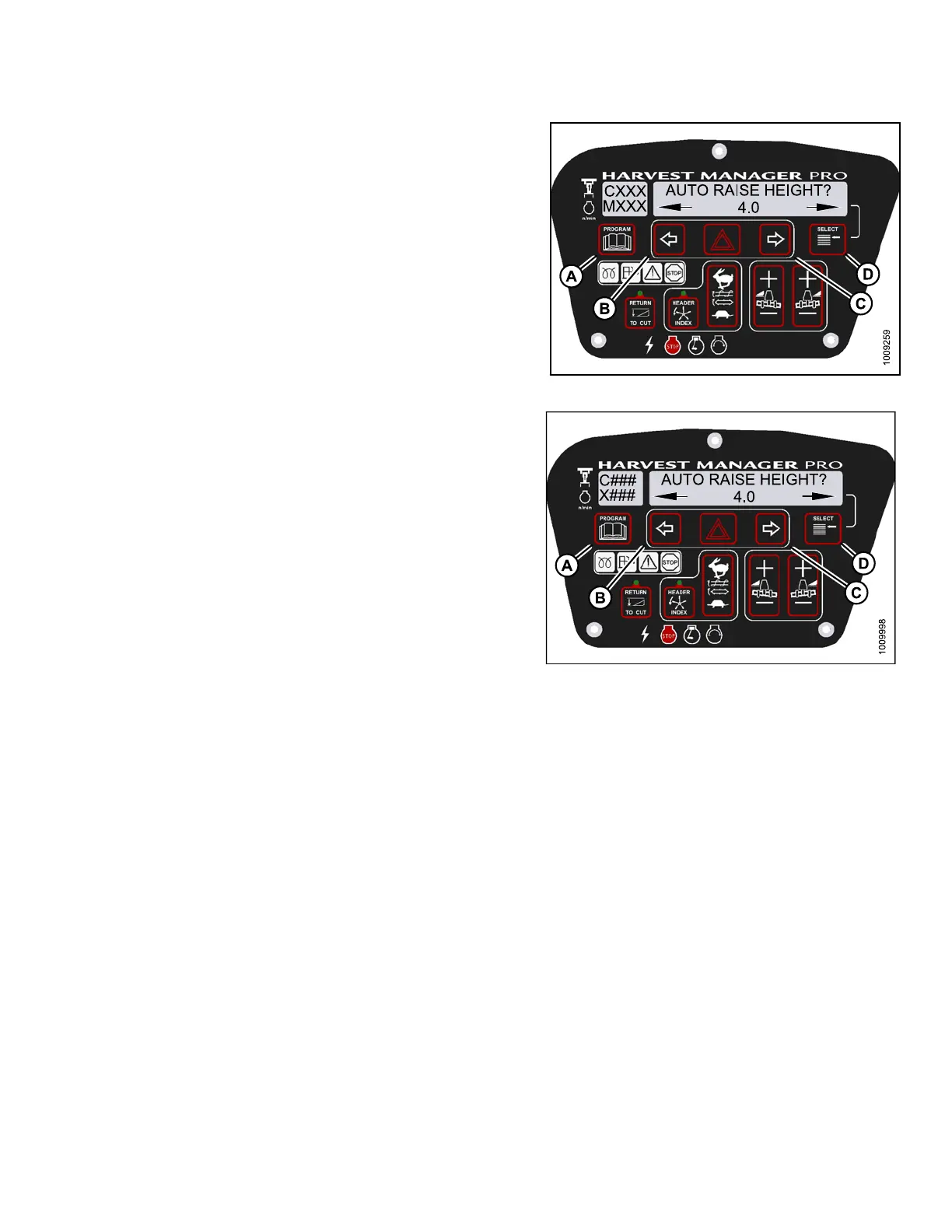

Figure 4.1
28: M155 Auto Raise Height
Figure 4.129: M205 Auto Raise Height
4.4.14 Activating the Hay Conditioner
NOTE
:
•This
procedure is for draper headers only.
•Theh
eader MUST be attached to the windrower to perform this procedure. The cab display module (CDM)
aut
omatically adjusts its programming for each header.
