ASSEMBLING THE W INDROWER
3.21.2 Attach
ing a D-Series Header
D50, D60, and D65 headers can be attached to an M105, M155, or M205 Self-Propelled Windrower. For
attachment procedures, refer to the s ection for your specific windrower model.
M105 Self-Propelled Windrower
To run a D -Series draper he ader, the M105 Se lf-Propelled
Windrower needs to be equipped with reel drive, reel lift,
and reel fore-aft hydraulics.
Windrowers equipped with D-Series hydraulics have four
header drive hoses on the left cab-forward side, and up to
five reel drive hos es on the right side.
If nece ssary, obtain the follow ing kits and insta ll them in
accordance with instructi ons supplied with the kits.
Kit Description Kit Number
Base Draper Drive kit
MD #B5577
Refer to the following procedures according to the
center-link installed on the windrower:
• Attaching a D-Series Header: Hydraulic Center-Link
without Self-Alignment, page 104
• Attaching a D-Series Header: Mechanical Center-Link,
page 110

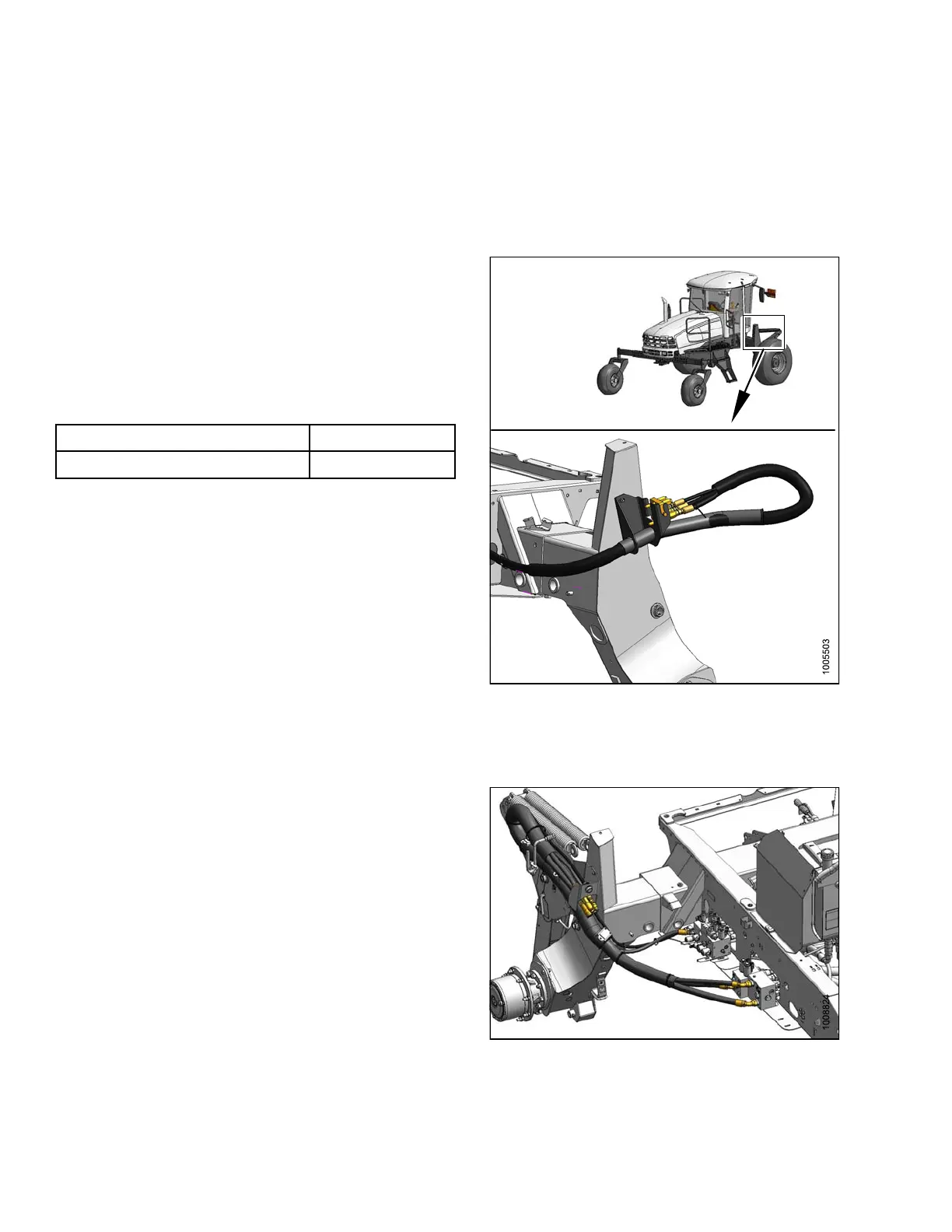

Figure 3.158: M105 Draper H eader Reel
Hydraulics
M155 Self-Propelled Windrower
The M155 Self-Propelled Windrower is factory-equipped to
run a D-Series Draper Header.
If installing an HC10 Hay Conditioner, Reverser kit
(MD #B4656) is recommended. If necessary, obtain the
recommended kit and install it in accordance with the
instructions supplied with the kit.
Refer to the following instructions based on the type of
center-link installed on your windrower:
• Attaching a D-Series Header: Hydraulic Center-Link
with Optional Self-Alignment, page 99
• Attaching a D-Series Header: Hydraulic Center-Link
without Self-Alignment, page 104
• Attaching a D-Series Header: Mechanical Center-Link,
page 110
Figure 3.159: M15
5 Draper Header Hydraulics
147962 98 Revision A
