ASSEMBLING THE W INDROWER
Attaching a D-Series Header: Mecha nical Center-Link
NOTE:
Draper header boots must be installed onto the windrower lift linkage before starting this procedure. R efer to
3.21.1 Attaching Header Boots, page 97.
DANGER
To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and remove
the key from the ignition before leaving the operator ’s seat for any reason.
1. Remove hairpin (A) from pins (B), and remove pins
from both header legs.

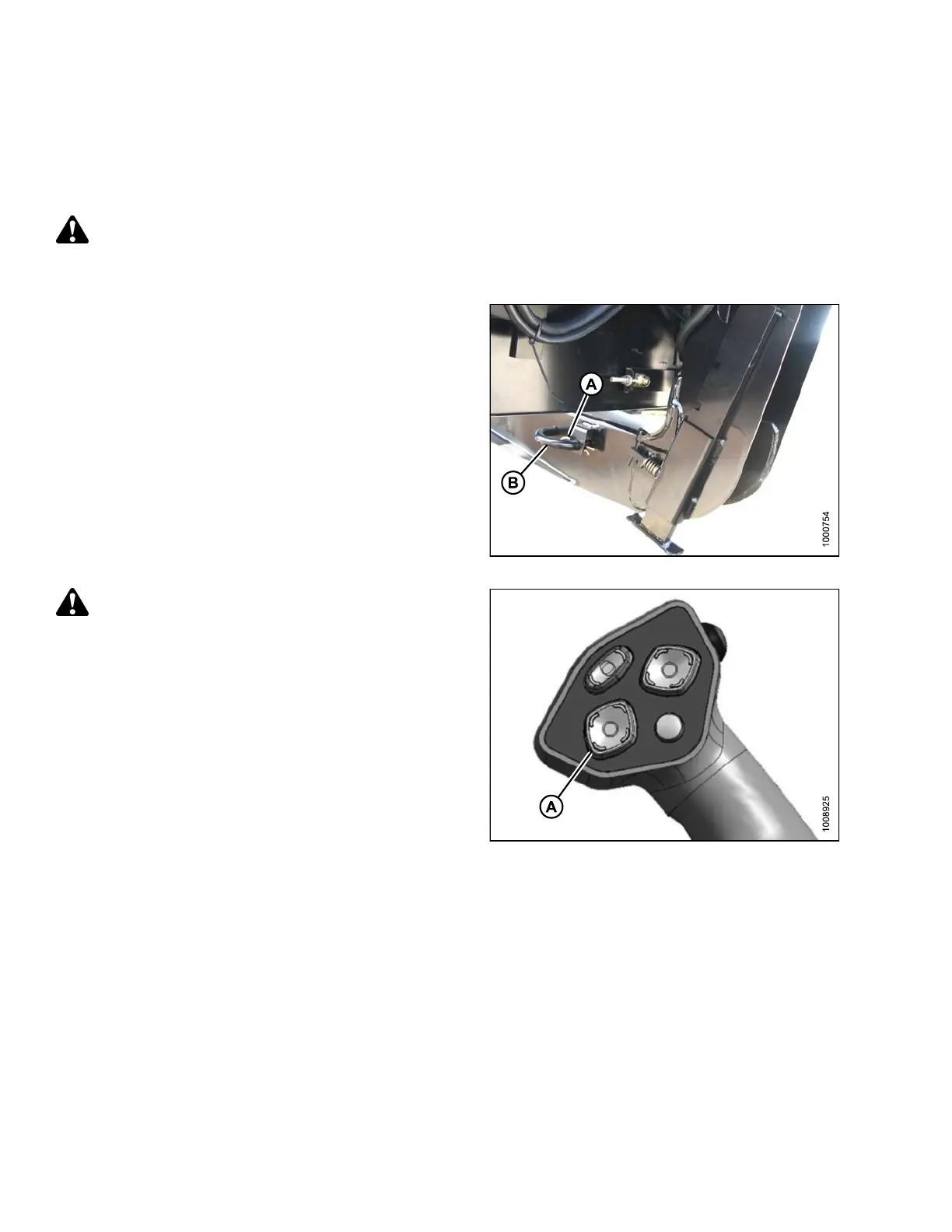

Figure 3.189: Header Leg
CAUTION
Check to be sure a ll bystanders have cleared t he area.
2. Start the e
ngine and a ct iva te the HEADER DOWN
button (A)
on the ground speed lever (GSL) to fully
retract he
ader lift cylinders.
Figure 3.190: Ground Speed Lever
