ASSEMBLING THE WINDROWER
3.6.3 Installing Hydraulics o n a n M105
1. Locate two hos
es (MD #111324 [green ties]) (A) in
frame opening
and existing tee fitting (green tie) on the
hose from the v
alve block.
2. Remove one ca
pfromteefitting, and quickly attach
hose (A) to mi
nimize oil spilla ge .
3. Remove secon
dcapfromteefitting, and quickly
connect oth
er hose (A).
4. Tighten fitt
ings.
5. Position ho
ses into frame.

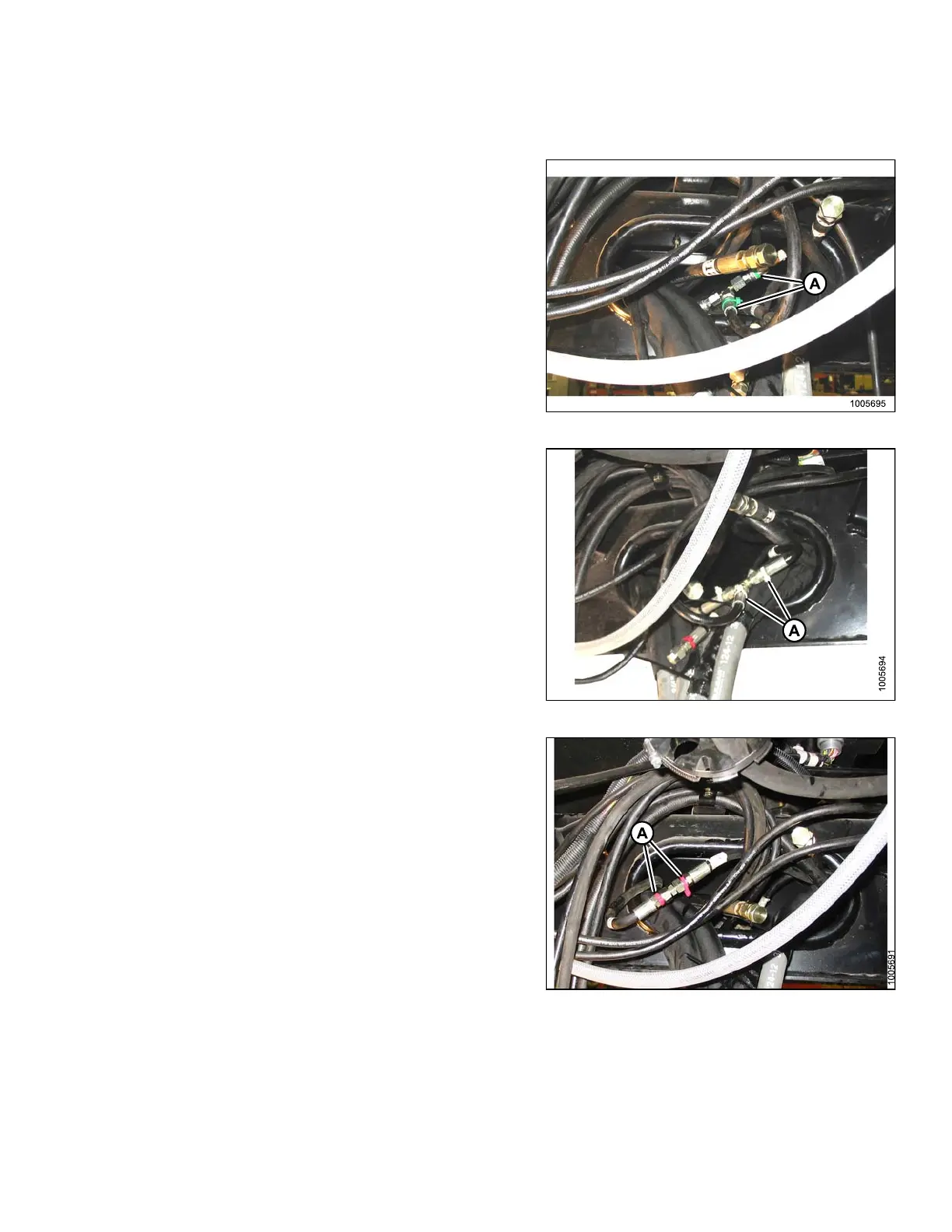

Figure 3.60: Hose Routing
6. Locate two
hoses (white ties) inside frame and
hose (MD #1
11324) with existing tee fitting (white
tie) (A) .
7. Remove ca
ps, make connections, and tighten fittings.
8. Position
hoses into frame.
Figure 3.61: Hose Routing
9. Locate
two hoses (red ties) (A) inside frame.
10. Route r
ight-hand hose behind bundle.
11. Remove
caps, make connection, and tighten fitting.
12. Posit
ion hoses into frame .
Figure 3.62: Hose Routing
