ASSEMBLING THE W INDROWER
41. Disengage and rotate hook (A) to fully up position.
42. Position hos e bundle (B) ove r hose support and
under hook.

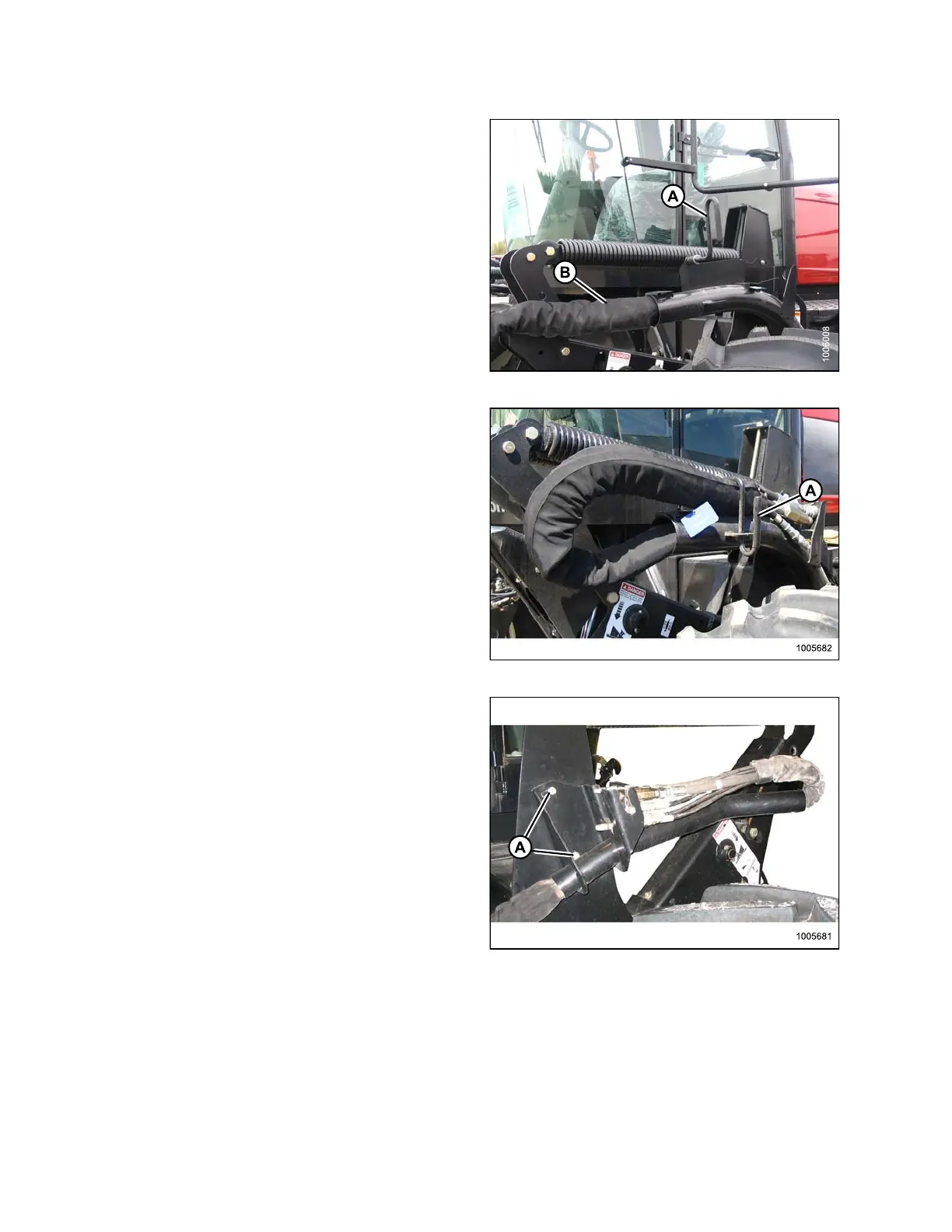

Figure 3.57: Hook Positioning
43. Lower hook (A) and engage in bracket in down position.
Figure 3.58: Hook Positioning
44. Attach the reel hose support tube to the right-hand reel
leg with two 3/8 x 1.0 in. carriage bolts (A) and nuts.
Figure 3.59: Reel Hose Support
