ASSEMBLING THE WINDROWER

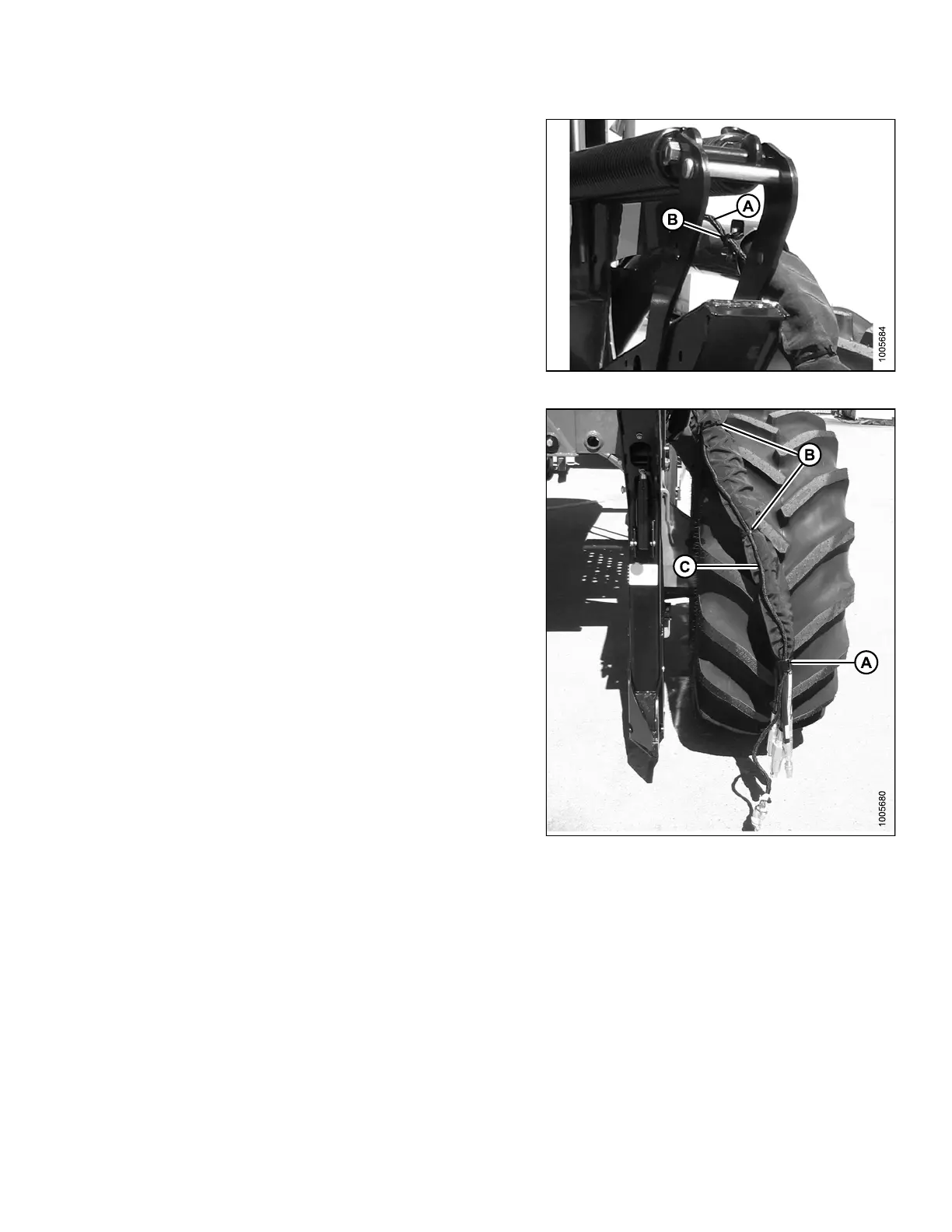

39. Attach harness (A) to hose support with hose clip (B).
Figure 3.55: Hose Support
40. Secure harness (C) to hose bundle with strap (A) and
new plastic cable ties (B). Ensure harness is clear of
pinch and friction points.
Figur
e 3.56: Electric Harness and Hose Bundle
147962 51 Revision A
