PERFORMING PREDELIVERY CHECKS
5.7 Checking Engine Coolant
1. Check the coolant level in the coolant recovery
tank (A). Tank should be at least half full.
2. If necessary, add coolant. Refer to windrower
operator’s manual for procedure specifications.
3. Ensure coolant concentration in the radiator is rated for
temperatures of -34°C (-30° F).

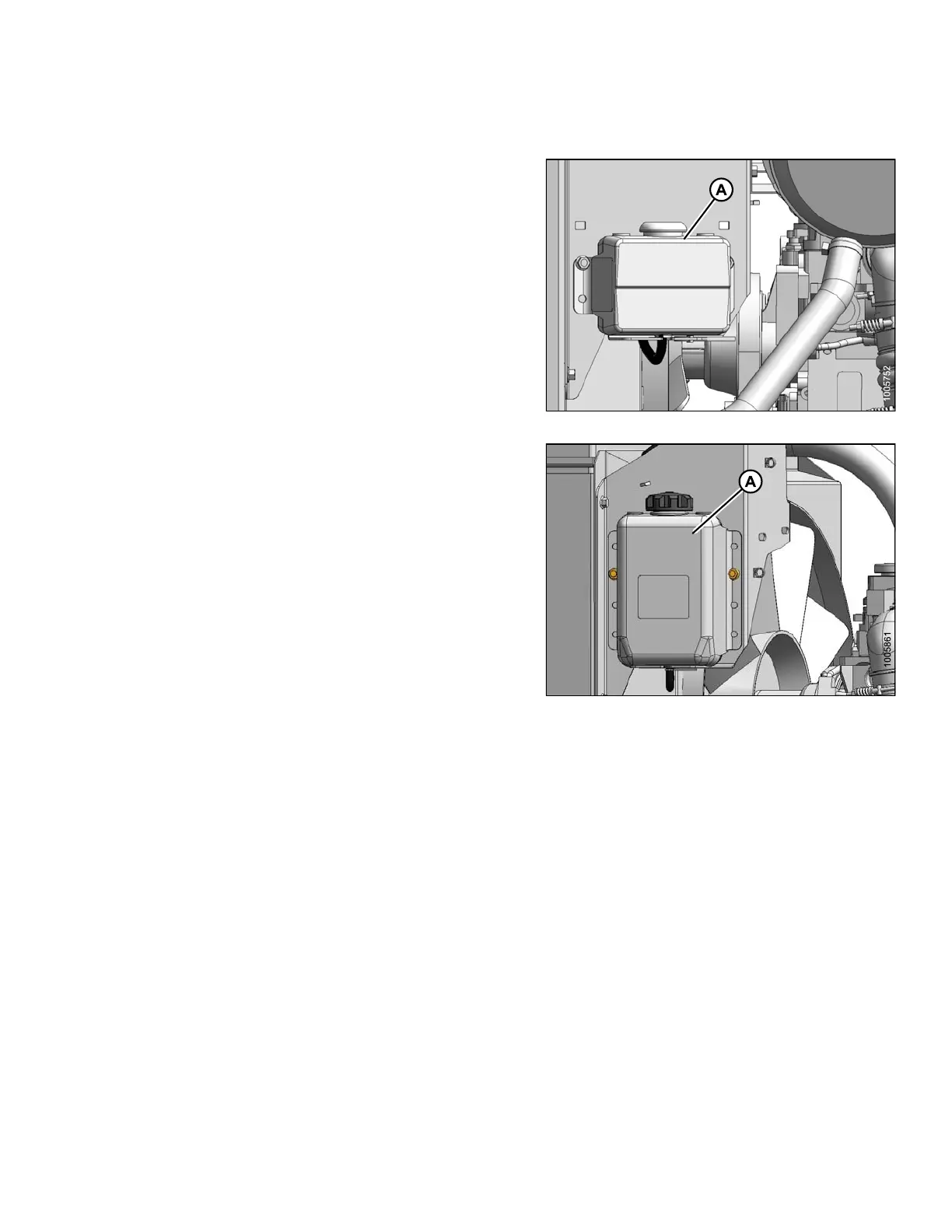

Figure 5.15: M105 Coolant Recovery Tank
Figure 5.16: M155/M205 Coolant Recovery Tank
147962 329 Revision A
