ASSEMBLING THE W INDROWER
20. Check the hydraulic oil level in the reservoir (remove
filler cap /dipstick ( A) and add SAE 15W-40 oil if
necessary). Refer to 5.5 Checking Hydraulic Oil, page
327.
21. Close the platforms.

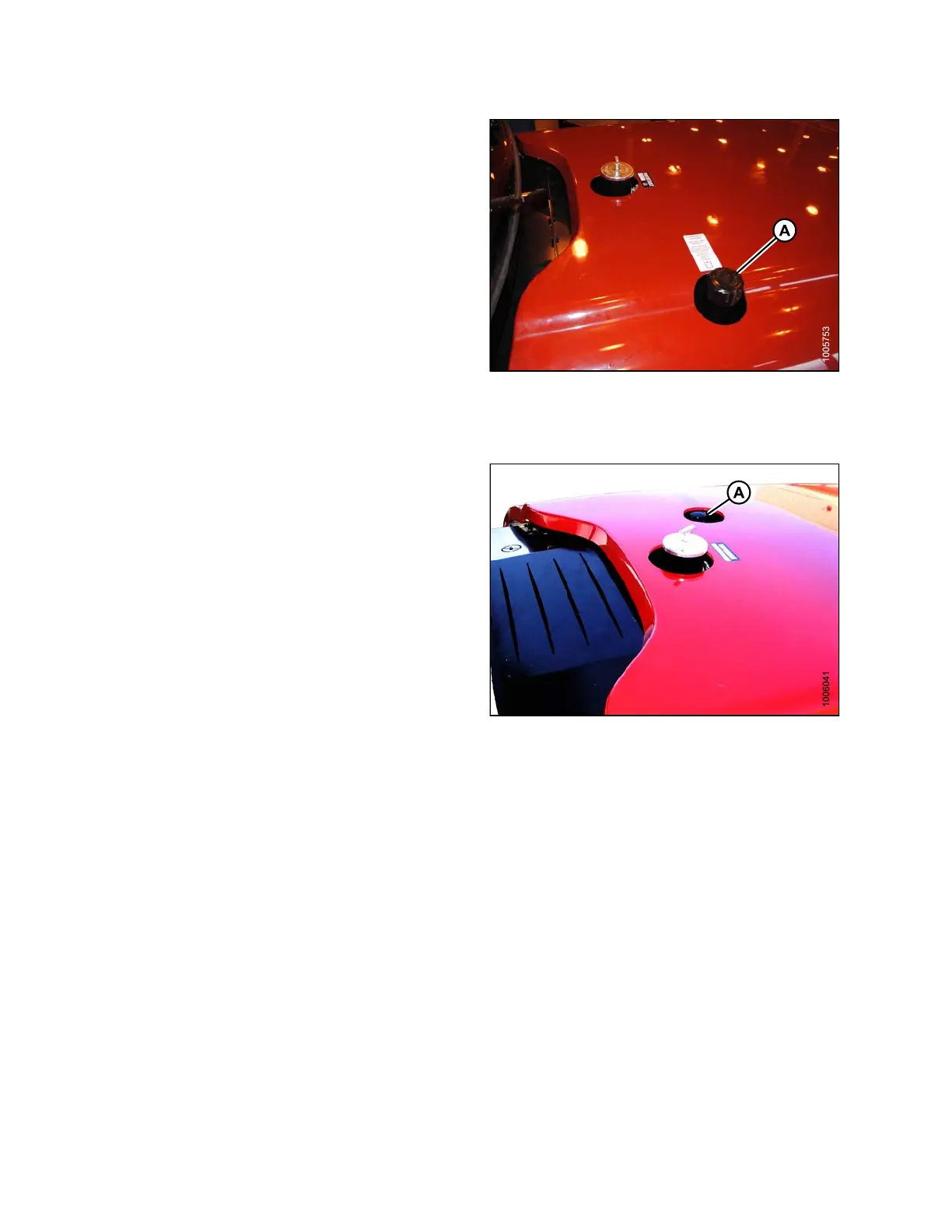

Figure 3.120: Filler Cap/Dipstick
3.14.3 Priming Hydraulic System on an M105
1. Remove the
hydraulic oil reservoir filler
cap/dips
tick (A).
2. Open the e
ngine compartment hood to the highest
positio
n. For instructions, refer to the windrower
operato
r ’s manual or the windrower technical manual.
Figure 3.121: Filler Cap/Dipstick
147962 80 Revision A
