CAB DISPLAY MODULE (CDM)
4.4.5 Setting
the Header Knife Speed
NOTE:
The header MUST be attached to the windrower to perform this procedure. The cab display module (CDM)
automatically adjusts its programming for each header. For more information, refer to 5.11.13 Setting and
Adjusting Knife Speed, page 351 to determine proper k nife speed.
1. Turn ignition key to RUN, or start the engine .
2. Press PROGRAM (A) and SELECT (C) on cab display
module (CDM) to enter Programming Mode.
• WINDROWER SETUP? is displayed on the
upper line.
• NO/YES is dis playe d on the lower lin e .
3. Press right (B)arrow to select YES. Press SELECT (C).
• SET KNIFE SPEED? is displayed.
• The current knife speed is displayed on the
lower lin e.

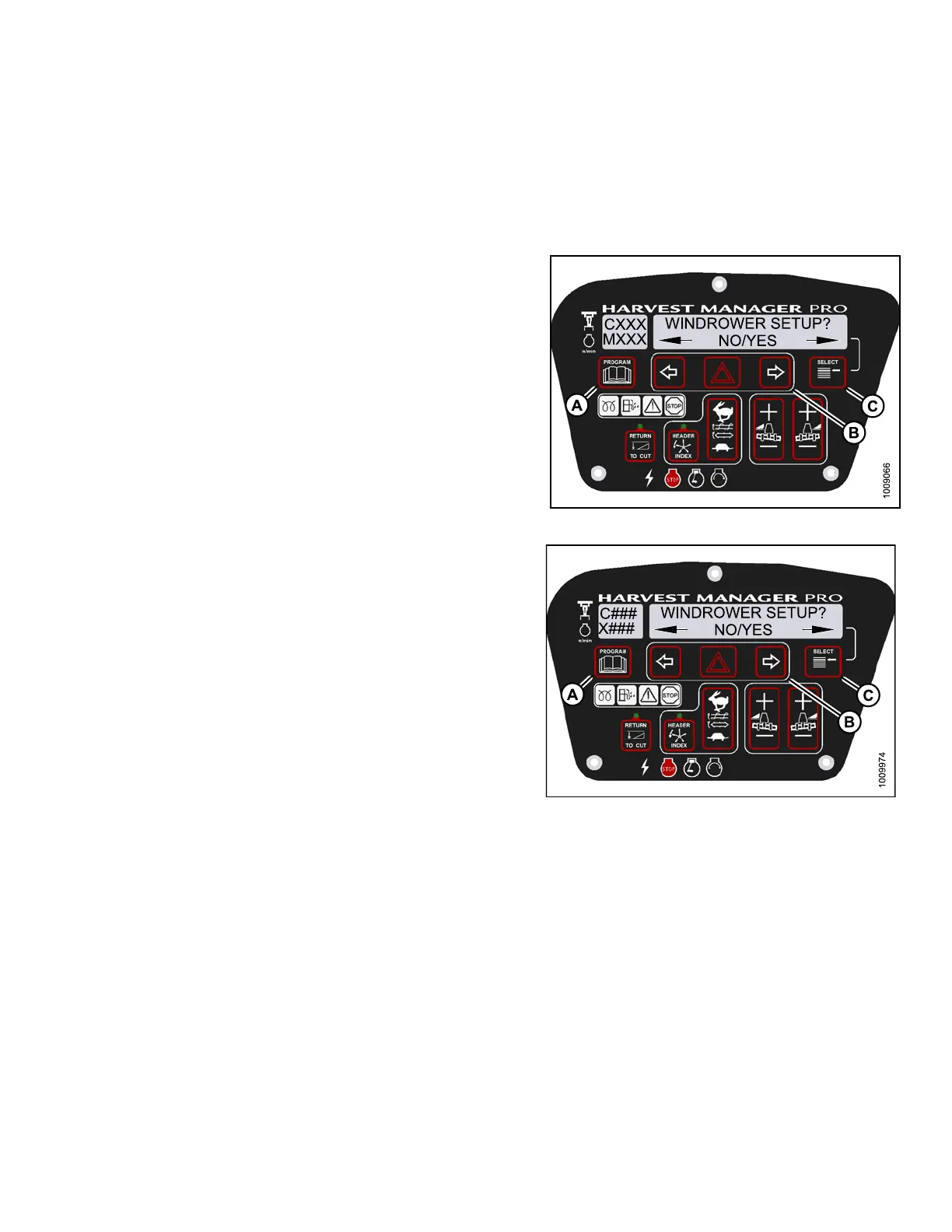

Figure 4.
82: M155 CDM Programming Buttons
Figure 4.83: M205 CDM Programming Buttons
147962 189 Revision A
