ASSEMBLING THE WINDROWER
3.12 Positioning Light and Mirror Assemblies
1. Remove the nut and bolt (A) securing the light and
mirror ass embly in the shipping position.
2. Swing the light and mirror assembly (B) forwards
and upwards.

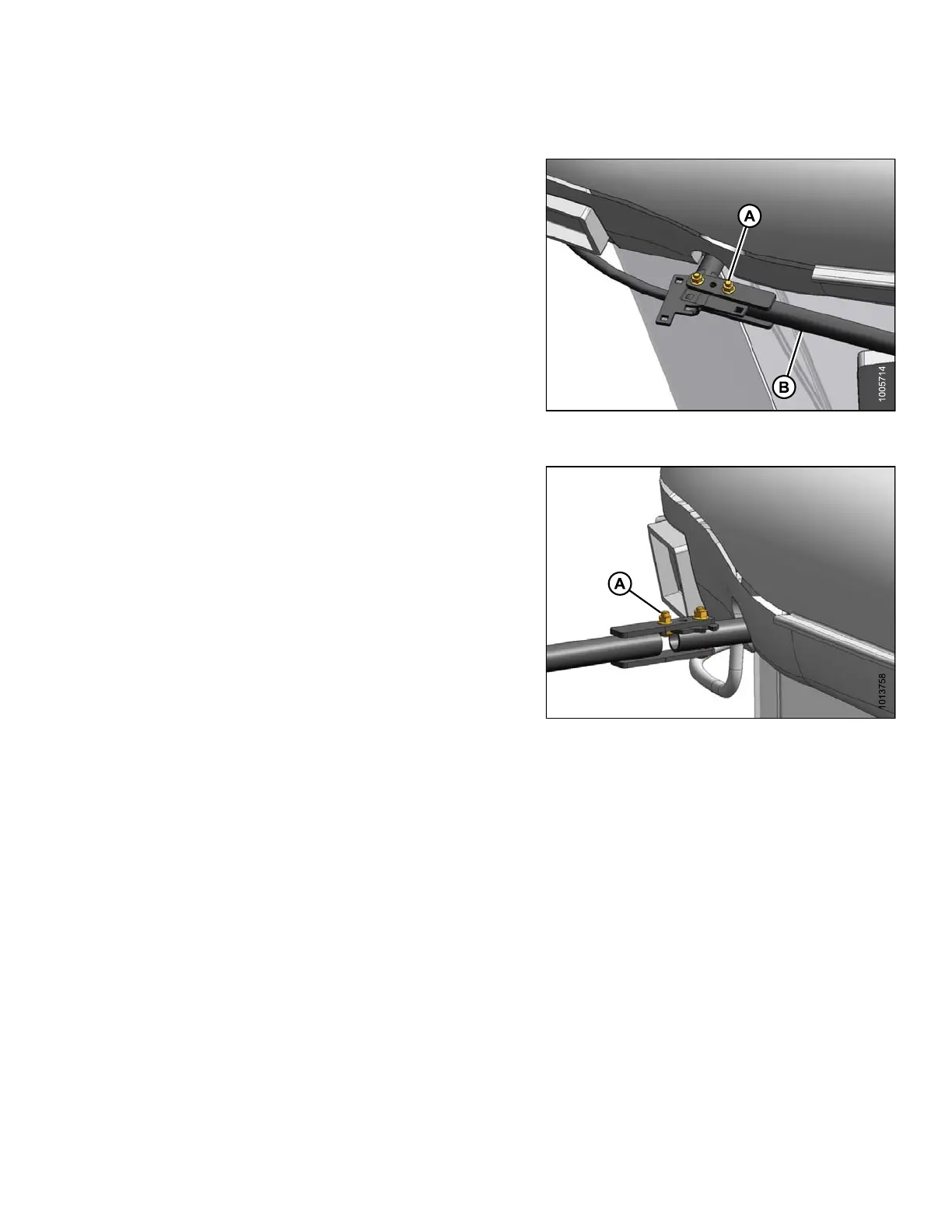

Figure 3.1
06: Light and M irror Assembly in
Shipping P
osition
3. Reinstall the bolt (A) and nut in other hole.
4. Repeat for opposite mirror assembly.
Figure
3.107: Light and Mirror Assembly in
Workin
g Posit ion
147962
71
Revision A
