ASSEMBLING THE W INDROWER
6. Tighten both clamps (A) just enough to permit the
stack (B) to move.

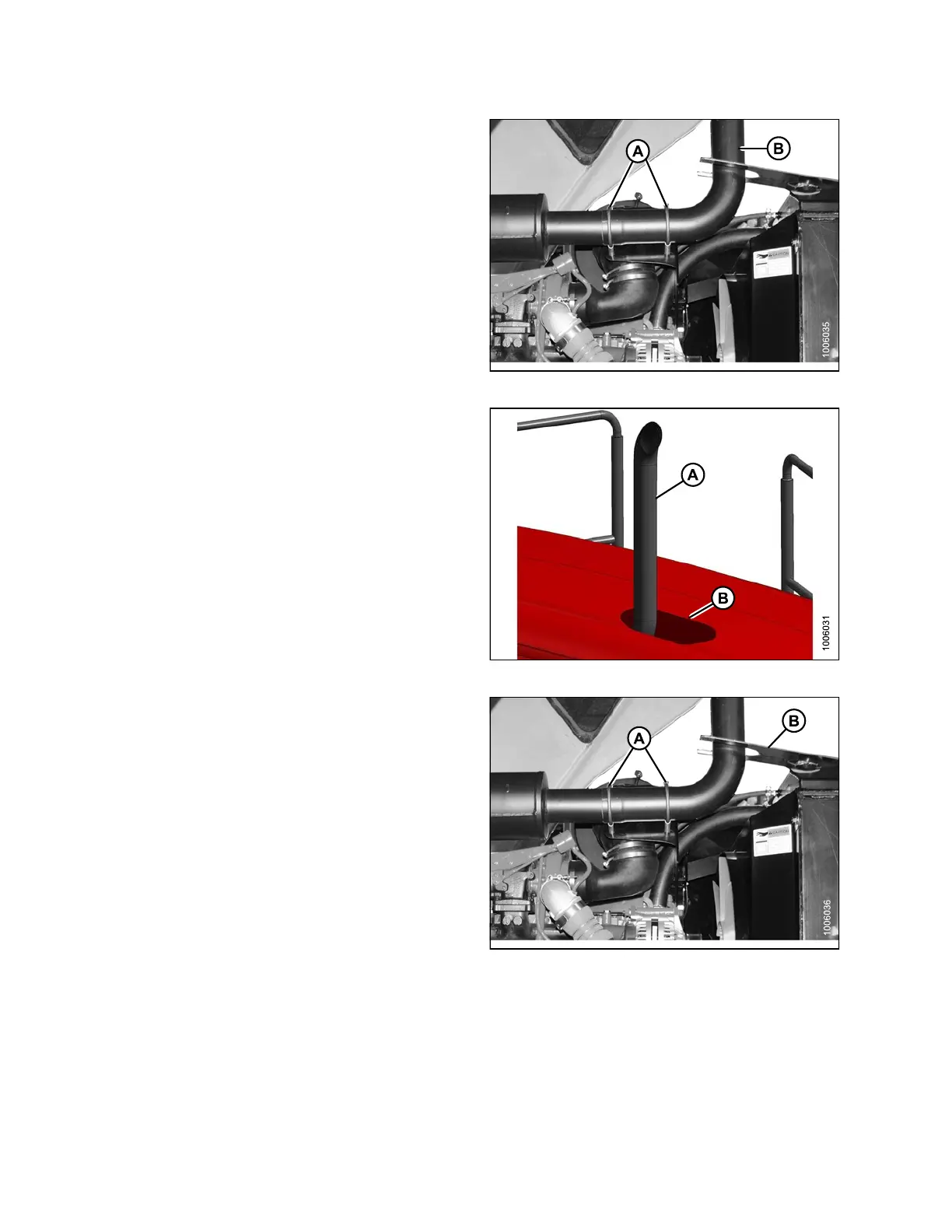

Figure 3.103: Exhaust Stack under Hood
7. Close the hoo d slowly so the stack (A) enters the
hole (B) in the hood. Adjust the position of the stack
as required to clear the hole in the hood.
Figure 3.104: Exhaust Stack Installed
8. Raise the hood.
9. Tighten clamps (A).
10. Reposition shroud (B) and tighten wing nut.
Figure 3.105: Exhaust Stack under Hood
147962 70 Revision A
