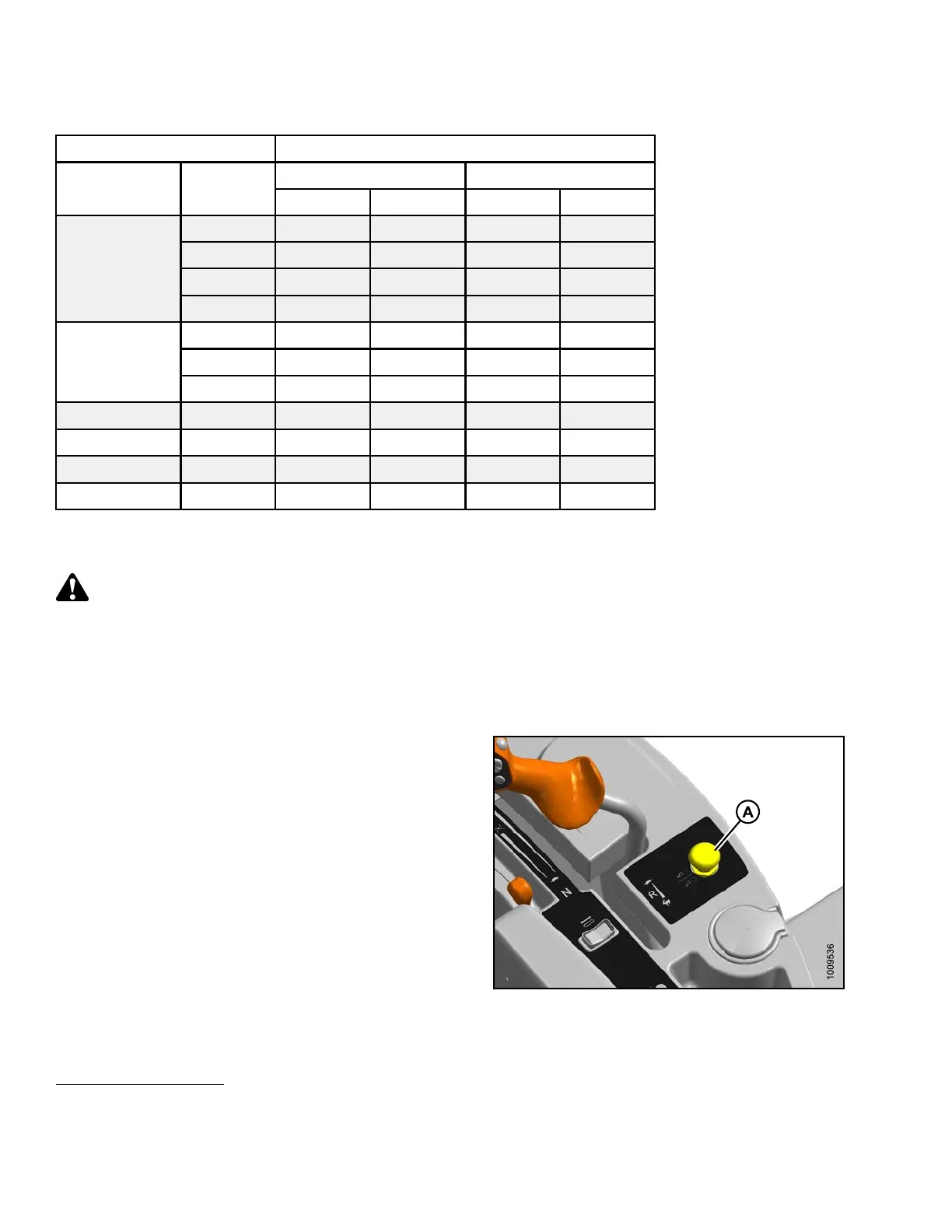

MacDon M Series - Setting Knife Speed

PERFORMING PREDELIVERY CHECKS
Table 5.5 Knife Speed Setting
Header Descri
ption
Knife Speed
Minimum Maximum
Type
Size (ft.)
rpm
13
spm
14
rpm
13
spm
14
15 750 1500 950 1900
20 and 25 700 1400 850 1700
30 600 1200 700 1600
Draper
(Double Knife)
35 600 1200 650 1400
20 and 25 600 1200 750 1500
30 600 1200 700 1400
Draper
(Single Knife)
35 550 1100 650 1300
Grass Seed
All 700 1400 975 1950
Auger A40-D All 700 1400 975 1950
Auger A3
0-D
All
775
1550 925 1850
Auger A30-S
All 625 1250
775
1550
Setting Knife Spe ed
CAUTION
Check to be sure all bystanders have cleared the area.
1. Start the engine. Refer to 3.15 Starting Engine, page 84.
2. MovethethrottletoadjusttheenginespeedtoIDLE.
3. Set the Intermediate Speed Control (ISC) to OFF. Refer to 4 Cab Display Module (CDM), page 153.
4. Engage the header drive switch (A), and pull up on the
black ring at the base of the switch.
NOTE:
A slight delay between activating the header
drive switc h and achieving operating speed
is normal.
5. Run the engine at maximum rpm.
NOTE:
To disengage the header drive, push down the
header drive switch (A).
Figure 5.48: Header Drive Switch
13. Speed of knife drive box pulley
14. Strokes per minute of knife (rpm x 2)
147962 352 Revision A
