MacDon M Series - Attaching a D-Series Header: Hydraulic Center-Link Without Self-Alignment

ASSEMBLING THE W INDROWER
19. Connect header drive hoses (A) and electrical
harness (B) to header. Refer to the draper header
operator’s manual.

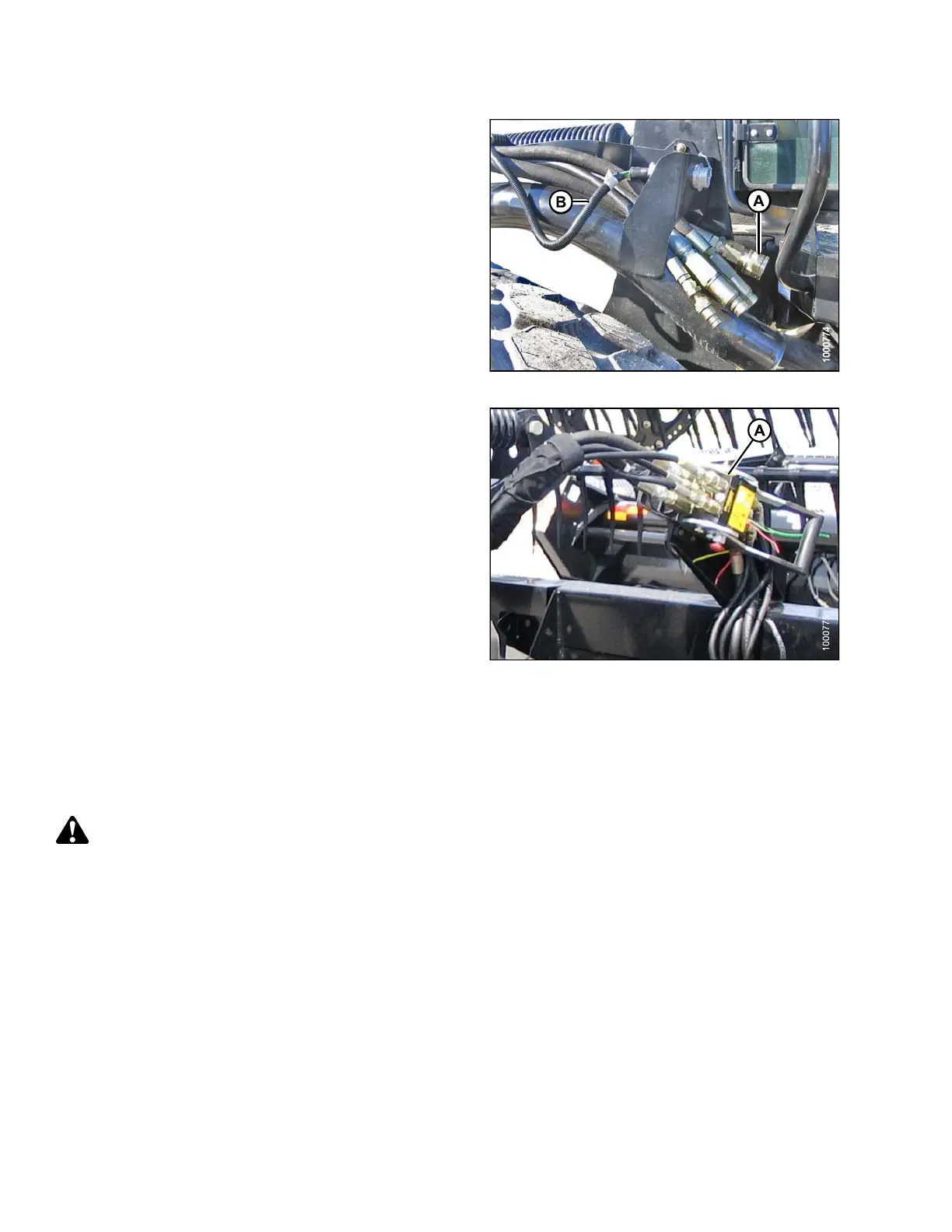

Figure 3.173: Header Drive Hoses and Harness
20. Connect reel hydraulics (A) at right cab-forward
side of windrower. Refer to the draper header
operator’s manual.
21. Start engine and raise and lower the header and the
reel a few times to remov e trapped air.
Figure 3.174: Reel Hydraulics
Attaching a D-Series Header: Hydraulic Center-Link witho ut Self-Alignment
NOTE:
Drap
er header boots must be installed onto the windrower lift linkage before starting this procedure. Refer to
3.21
.1 Attaching Header Boots, page 97.
DANGER
To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and remove
the key from the ignition before leaving the operator ’s seat for any reason.
147962 104 Revision A
