ASSEMBLING THE WINDROWER
1. Remove hairpin (A) from pins (B), and remove pins
from both header legs.

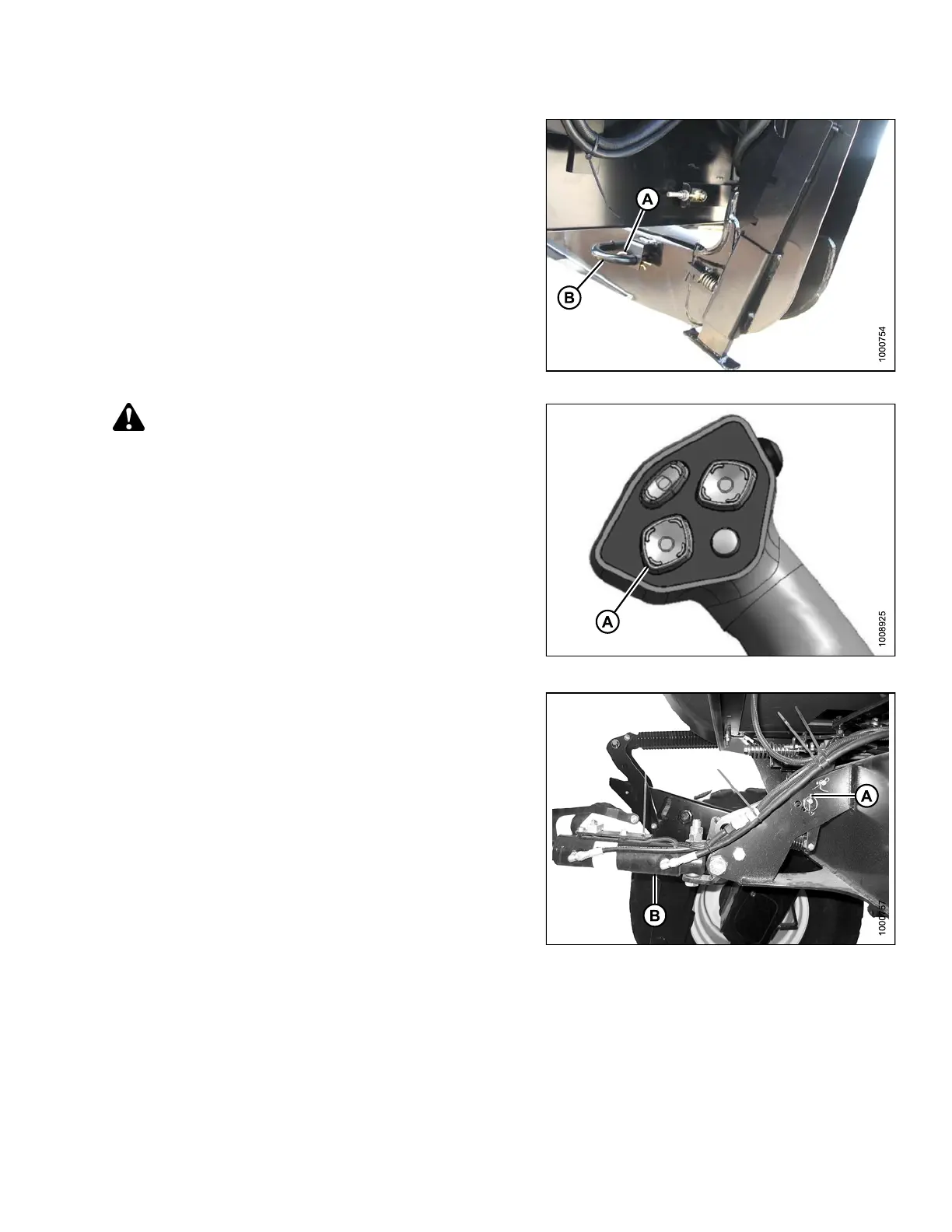

Figure 3.175: Header Leg
CAUTION
Check to be sure all bystanders have cleared the area.
2. Start the engine and activate the HEADER DOWN
button (A) on the ground speed lever (GSL) to fully
retract header lift cylinders.
Figure 3.176: Ground Speed Lever
3. Relocat
e pin (A) in frame linkage as required to
raise th
e center-link (B) until the hook is above the
attach
ment pin on the header.
IMPORT
ANT:
If the c
enter-link is too low, it may contact th e
heade
r as the windrower approaches the header
for ho
okup.
Figure 3.177: Hydraulic Center-Link without
Self-Alignment Kit
147962 105 Revision A
