ASSEMBLING THE W INDROWER
4. Drive the windrower slowly forward until the boots (A)
enter the header legs (B). Continue driving slowly
forward until lift linkages contact the support plates in
the header legs and the header nudges forward.
5. Ensure the lift linkages are properly engaged in the
header legs and are contacting the support plates.

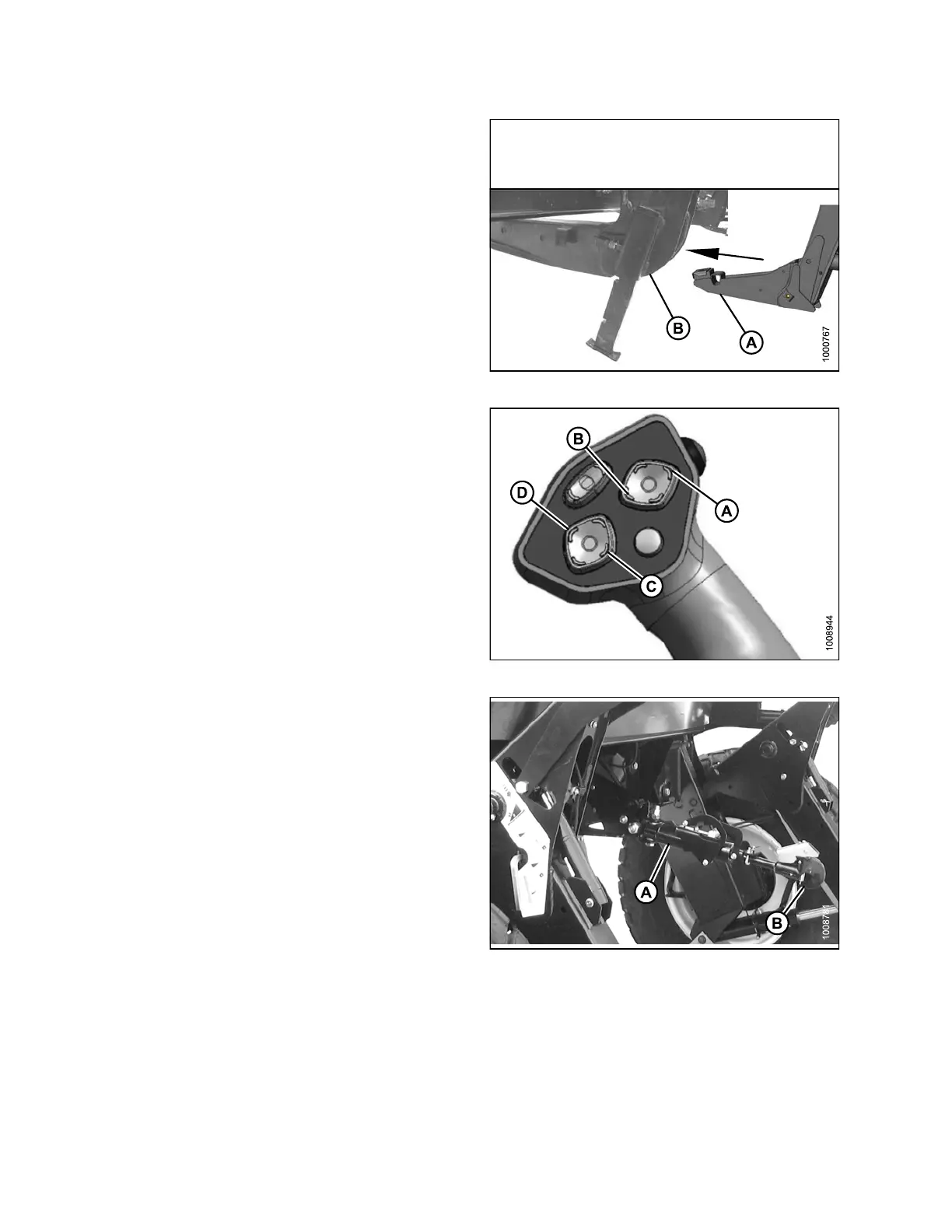

Figure 3.178: Header Leg and Boot
6. Use the follow ing G S L functions to position the
center-link hook above the header attachment pin:
• Header tilt up (A) to retract the center-link
• Header tilt down (B) to extend the center-link
7. Stop engine and remove key from ignition.
Figure 3.179: Ground Speed Lever
8. Push down on rod end of link cylinder (B) until hook
engages and locks onto header pin.
IMPORTANT:
Hook release must be down to enable self-locking
mechanism. If the release is open (up), manually
push it down after hook engages header pin.
9. Check that center-link (A) is locked onto header by
pulling upward on rod end (B) of cylinder.
Figure 3.180: Hydraulic Center-Link
