MacDon M Series - Attaching an R-Series Header: Mechanical Center-Link

ASSEMBLING THE W INDROWER

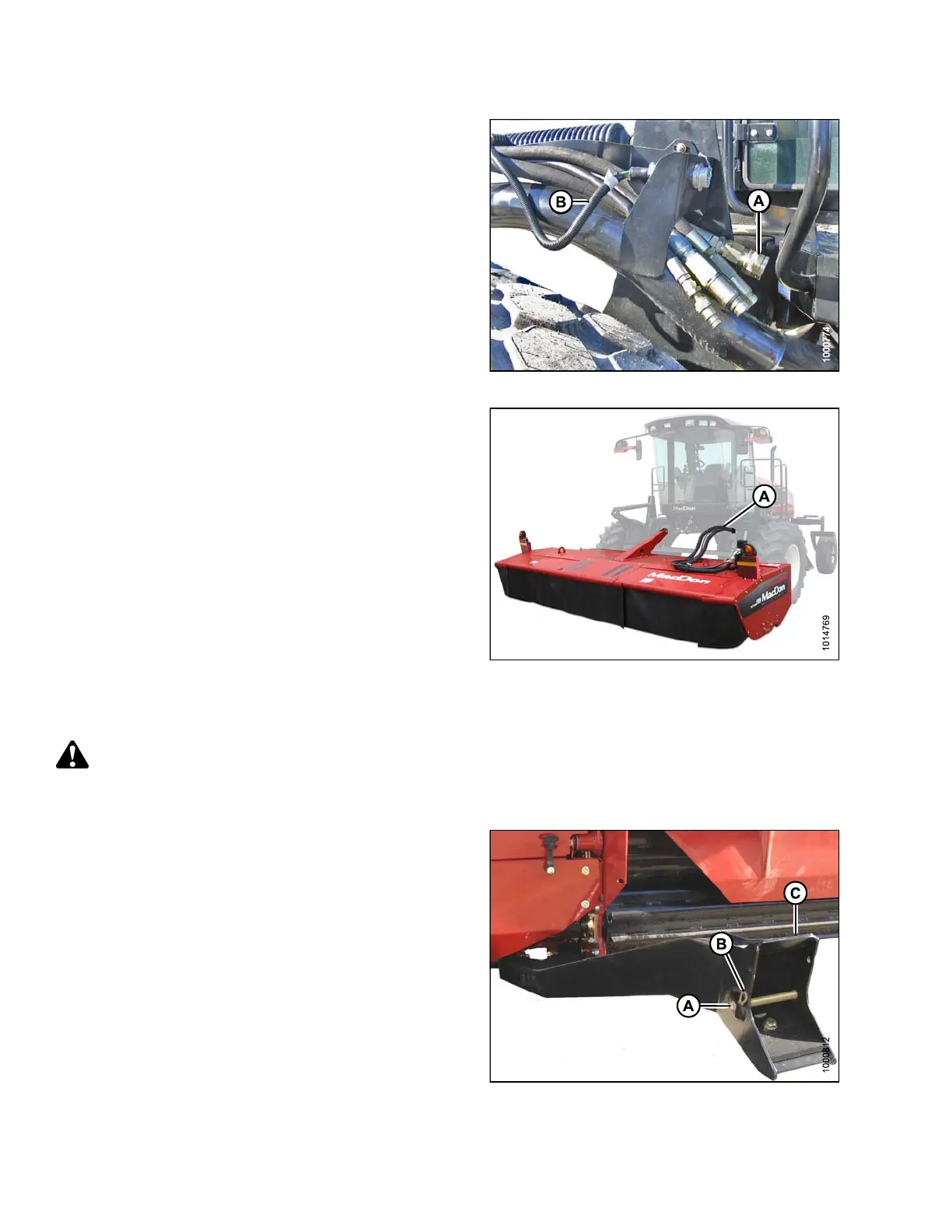

18. Connect header drive hoses (A) and electrical
harness (B) to header. Refer to the rotary disc header
operator’s manual.
Figure 3.277: Header Drive Hoses and Harness
19. Connect the header drive hoses and electrical
harness (A) to the header. Refer to the rotary disc
header operator’s manual.
Figure 3.278: Header Connections
Attaching an R-Series He ader: Mechanical Center-Link
DANGER
To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and remove
the key from the ignition before leaving the operator ’s seat for any reason.
1. Remo ve hairpin (B) from clevis pin (A) and remove
clevis pin from the header boots (C) on both sides of
the header.
Figure 3.279: Header Boot
147962
14
4
Revision A
