MacDon M Series - Setting the Engine Intermediate Speed Control (ISC) RPM on an M155;M205

CAB DISPLAY MODULE (CDM)
4.4.19 Settin
g the Engine Intermediate Speed Control (ISC) RPM on an
M155/M205
NOTE:
The engine MUST be running to perform this procedure.
1. Turn ignition key to RUN, or start the engine.
2. Press PROGRAM (A) and SELECT (C) on cab display
module (CDM) to enter Programming Mode.
• WINDROWER SETUP? is displayed on the
upper line.
• NO/YES is displayed on the lower line.
3. Press right (B) arrowto select YE S. PressSELE CT (C).
• SET K NIFE SPEED? is displayed on the upper line.

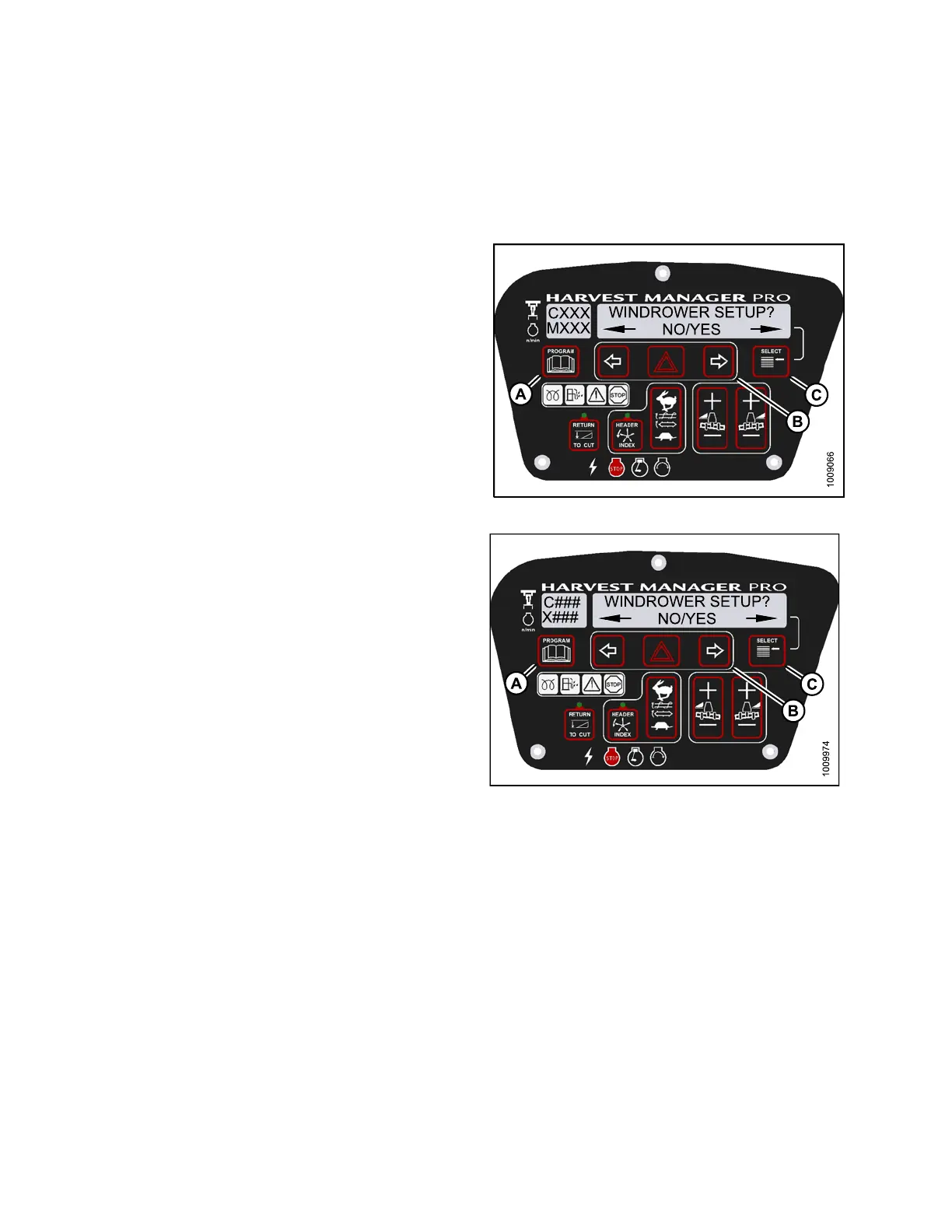

Figure 4.
149: M155 CDM P rogramming Buttons
Figure 4.150: M205 CDM P rogramming Buttons
147962 218 Revision A
