PERFORMING PREDELIVERY CHECKS
5.5 Checking H ydraulic Oil
DANGER
To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and remove
the key from the ignition before leaving the operator’s seat for any reason.
1. For M105: Clean cap (A) and surrounding area.
2. For M105: Turn filler cap (A) counterclockwise to
unlock cap and remove dipstick.

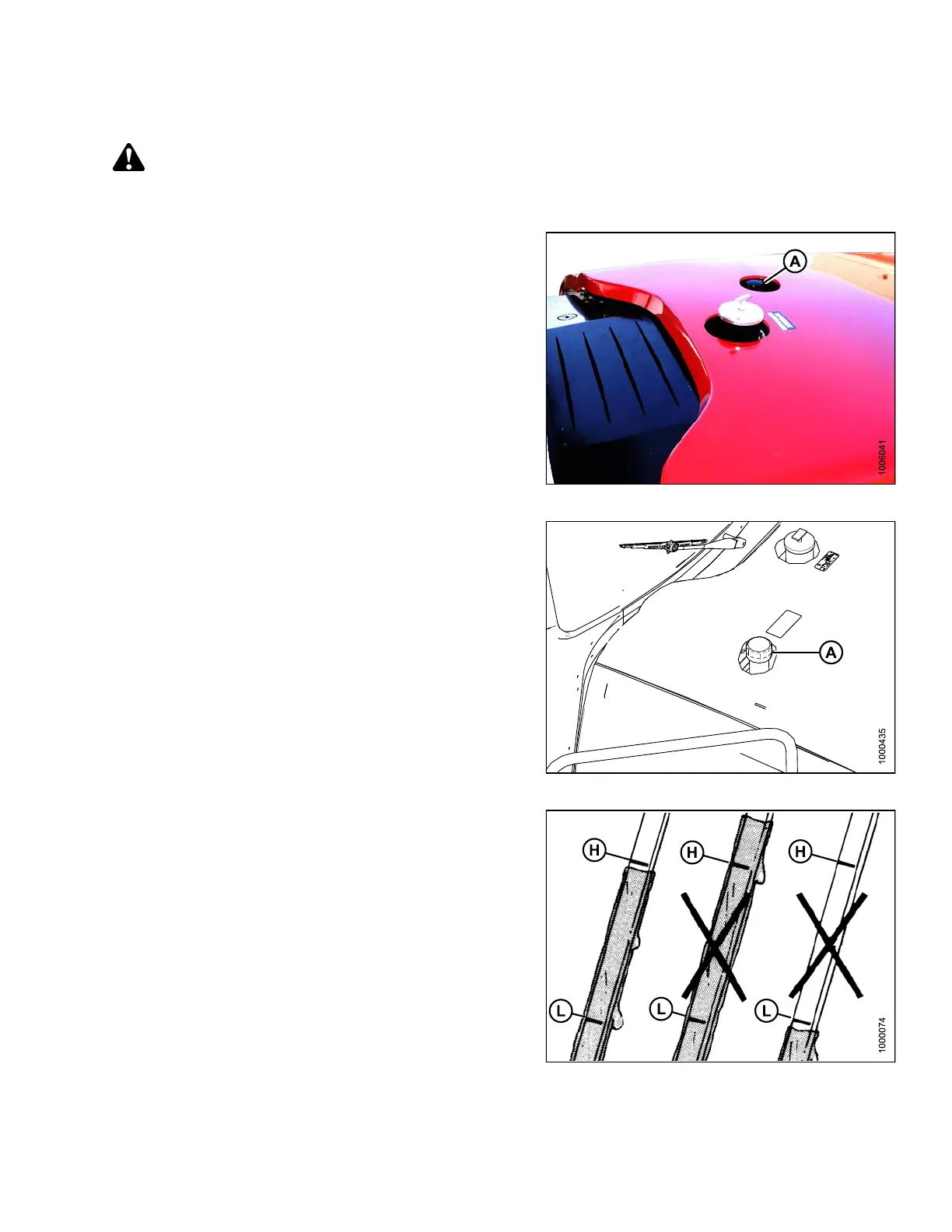

Figure 5.11: Engine Hood
3. For M155 and M205: Clean cap (A) and
surrounding area.
4. For M155 and M205: Turn filler cap (A)
counterclockwise t o unlock cap and remove dipstick.
Figure 5.12: Engine Hood
5. Ensure hydraulic oil level is between the low (L) and
full (H) marks.
6. If necessary, add oil to m aintain a level between the
low (L) and full (H) marks. Refer to the windrower
operator’s manual for specifications.
7. Reinstall dipstick and filler cap, and turn clockwise to
tighten/lock.
Figure 5.13: Hydraulic Oil Levels
