CAB DISPLAY MODULE (CDM)
4.2.4 Adjusti
ng the Cab Display Backlighting
The backlighting feature brightens the display screen helping you read the cab display module (CDM) in low
light situations.
1. Turn ignition key to RUN, or start the engine.
2. Press PROGRAM (A) and SELECT (C) on cab display
module (CDM) to enter Programming Mode.
• WINDROWER SETUP? is displayed on the
upper line.
• NO/YES is displayed on the lower line.

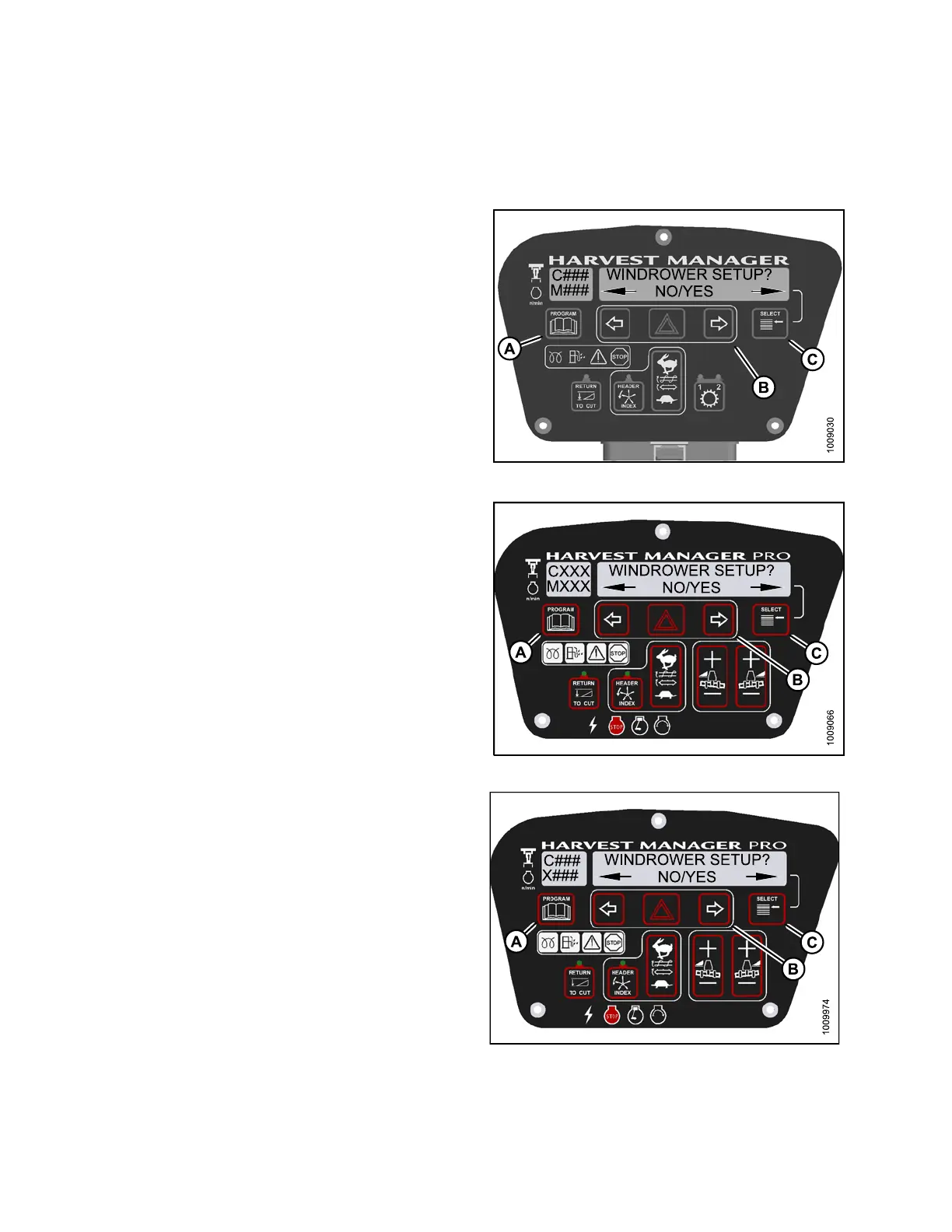

Figure 4.30: M105 CDM Programming Buttons
Figure 4.31: M155 CDM Programming Buttons
Figure 4.32: M205 CDM Programming Buttons
147962 166 Revision A
