UNLOADING THE WINDR OW ER
2.4 Removing D rive Wheels
IMPORTANT:
Remove the drive wheels as a pair from above the hood.

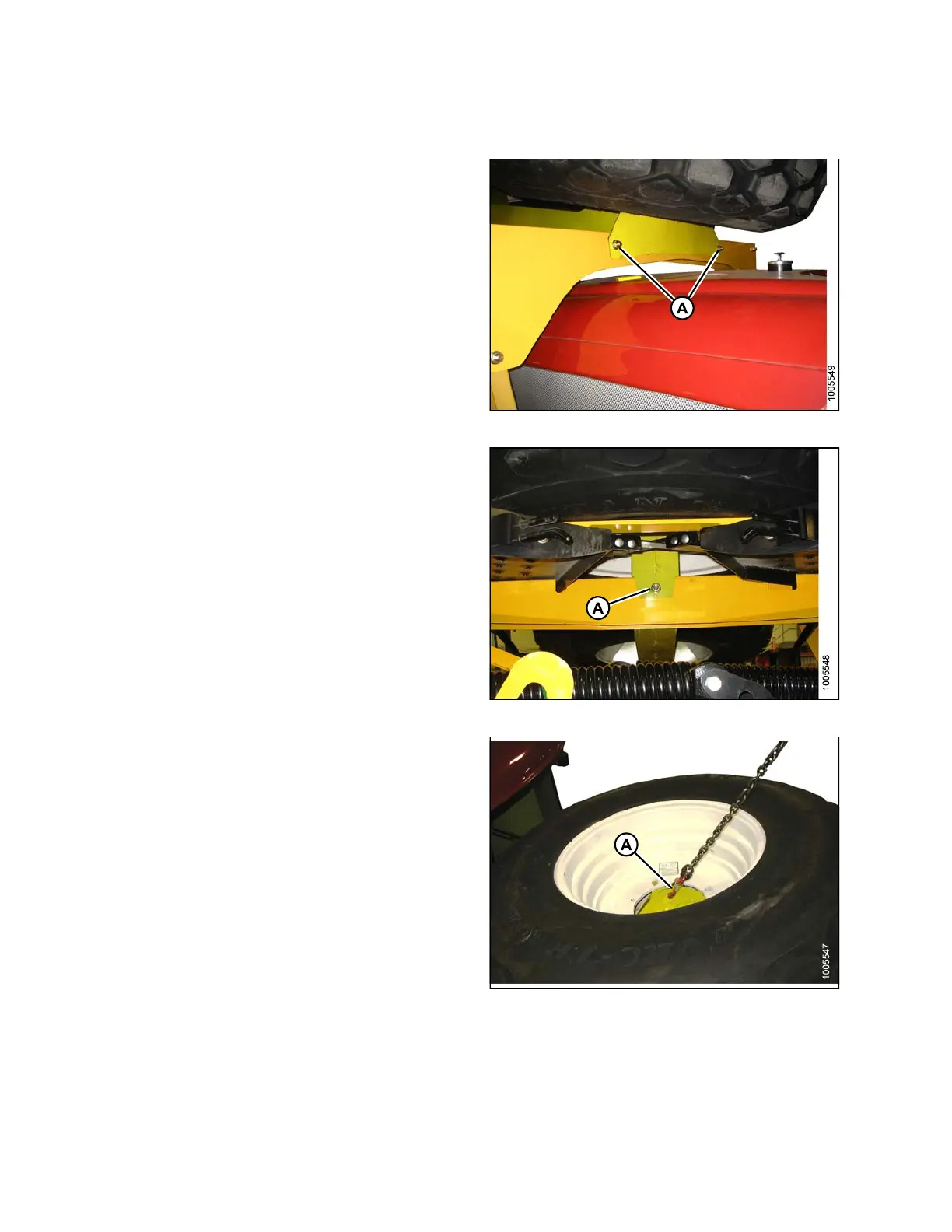

1. Remove the two
bolts (A) from the front cross m ember
over the hood
.
Figure 2.1
7: Front Cross M ember on Hood
2. Remove one bolt (A) from the rear of the hood directly
under the center of the drive wheel.
Figure 2
.18: Rear of Hood
3. Attach a lifting device to the lift hooks (A) located in the
center of each drive wheel.
Figu
re 2.19 : Drive W h e el
147962 16 Revision A
