UNLOADING T HE WINDROWER
7. Attach a chain to the wheel/step assembly (A) a nd
a lifting device, and pull away from the shipping
assembly.

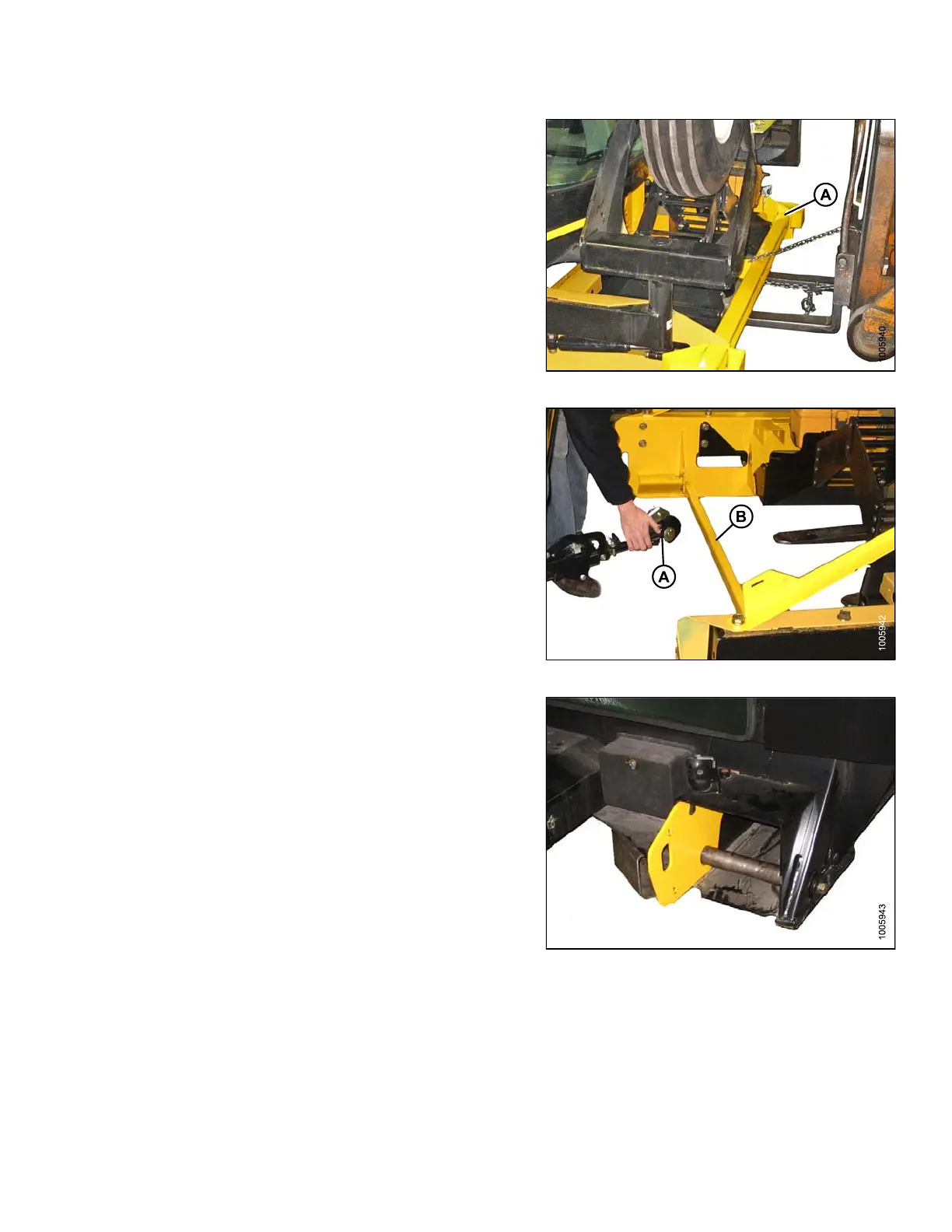

Figure 2.14: Wheel/Step Shipping Assembly
8. Lift center-link (A) until it clears the wheel/step
assembly frame (B).
Figure 2.15: Wheel/Step Assembly Frame
9. Install leg bolts, washers, and nuts to secure the lifting
plate onto the mainframe.
Figure 2.16: Lifting Plate
