MacDon M Series - Testing the Double Windrower Attachment (DWA) Drive Activate Function Using the Cab Display Module (CDM)

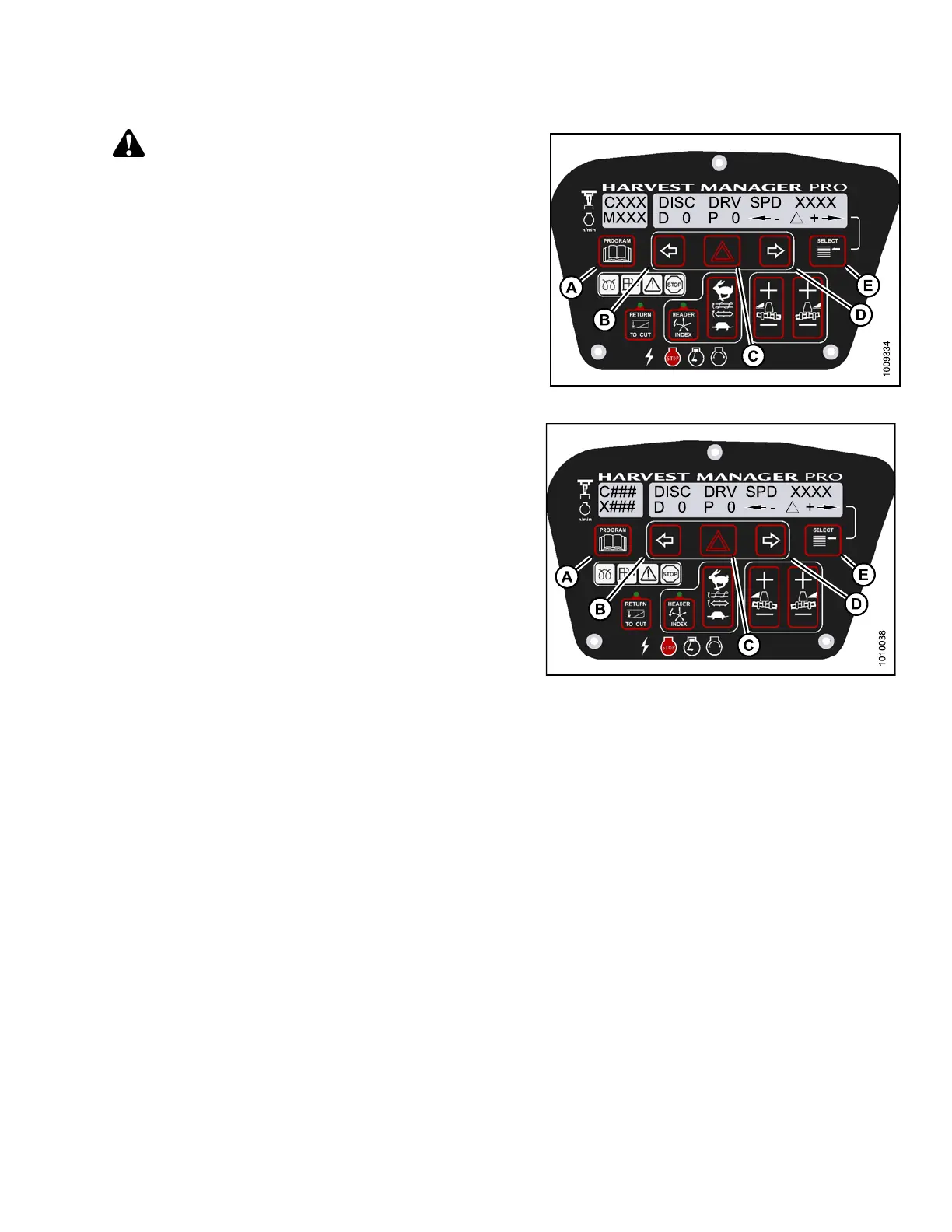

CAB DISPLAY MODULE (CDM)
CAUTION
Check to be sure all bystanders have cleared the area.
7. Press SELECT (E) until DISC DRV SPD XXXX is
displayed on the upper line.
IMPORTAN T:
Do NOT over-speed the disc drive.
8. Press and hold HAZARD (C) button.
• Press left (B) arrow to decrease disc speed.
• Press right (D) arrow to increase disc sp ee d.
Verify the disc d rive is functioning properly.
9. Release the HAZARD (C) button. The disc drive
will stop.
Figure 4.372: M155 Disc Drive
Figure 4.373: M205 Disc Drive
10. Press
PROGRAM to exit Programming Mode or press
SELEC
T to proceed to next ACT IVATE F UNCTION.
4.8.13 Testing the Double Windrower Attachment (DWA) Drive Activate
Function Using the Cab Display Module (CDM)
IMPORTAN T
:
Do not ove
r-speed a drive. Over-speeding can lead to vibration, belt failures, or other over-speeding related
problems
.
NOTE:
• DWA must be attached to windrower and activated under the WINDROWER SETUP menu. For more
information, refer to 4.4.12 Activating the Double Windrow Attachment (DWA), page 204.
• Engine MUST be running to perform this procedure.
147962 313 Revision A
