6.1.7 O-Ring F
ace Seal (ORFS) Hydraulic Fittings
1. Check components to ensure that sealing surfaces and
fitting threads are free of burrs, nicks, scratches, or any
foreign material.

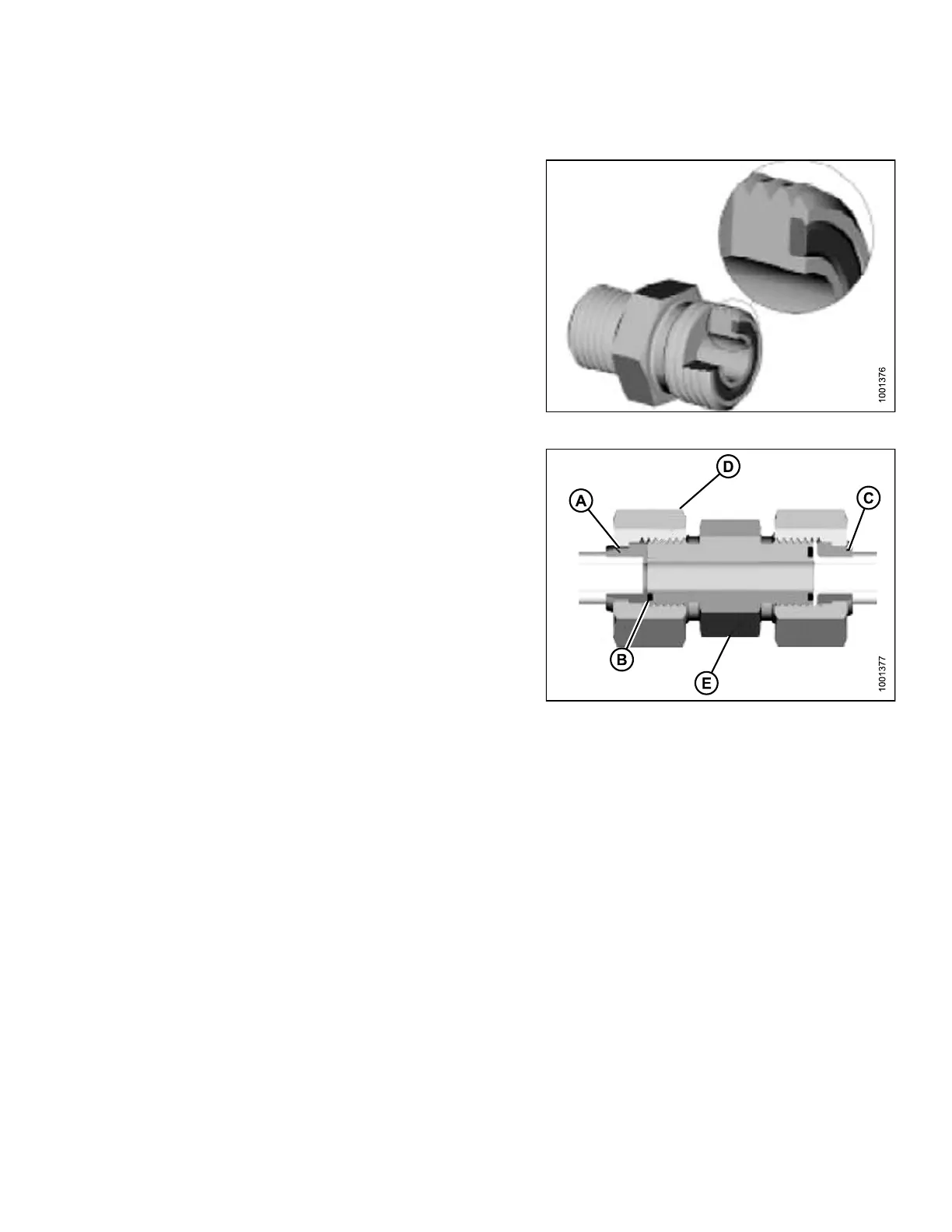

Figure 6.14: Hydraulic Fitting
2. Apply hydraulic s yst em oil to O -ring (B).
3. Align tube or hose assembly so that flat face of sleeve
(A) or (C) comes in full contact with O-ring (B).
4. Thread tube or hose nut (D) until hand-tight. The nut
should turn freely u ntil it is bottomed out.
5. Torque fittingsaccording to values in Table 6.13 O-Ring
Face Seal (ORFS) Hydraulic Fittings, page 368.
NOTE:
If ap plicable, hold hex on fitting body (E) to
prevent rotation of fitting body and hose when
tightening fitting nut (D).
6. Use three wrenches when assembling unions or joining
two hoses together.
7. Check final condition of fitting.
Figure 6.15: Hydraulic Fitting
147962 367 Revision A
