ASSEMBLING THE W INDROWER
3.9 Installing Platforms
NOTE:
The M105 has a left-hand platform only, whereas the M155 and M205 have left- and right-hand platforms. The
procedure for left-hand installation is shown—right-hand installation is similar.
1. Removethetwo1/2x3/4in. bolts(A)securingthe
rails to the shipping beam, and remove the rails. Retain
hardware.
2. Remo ve the shipping brackets from t he platform
assembly. Retain hardware.

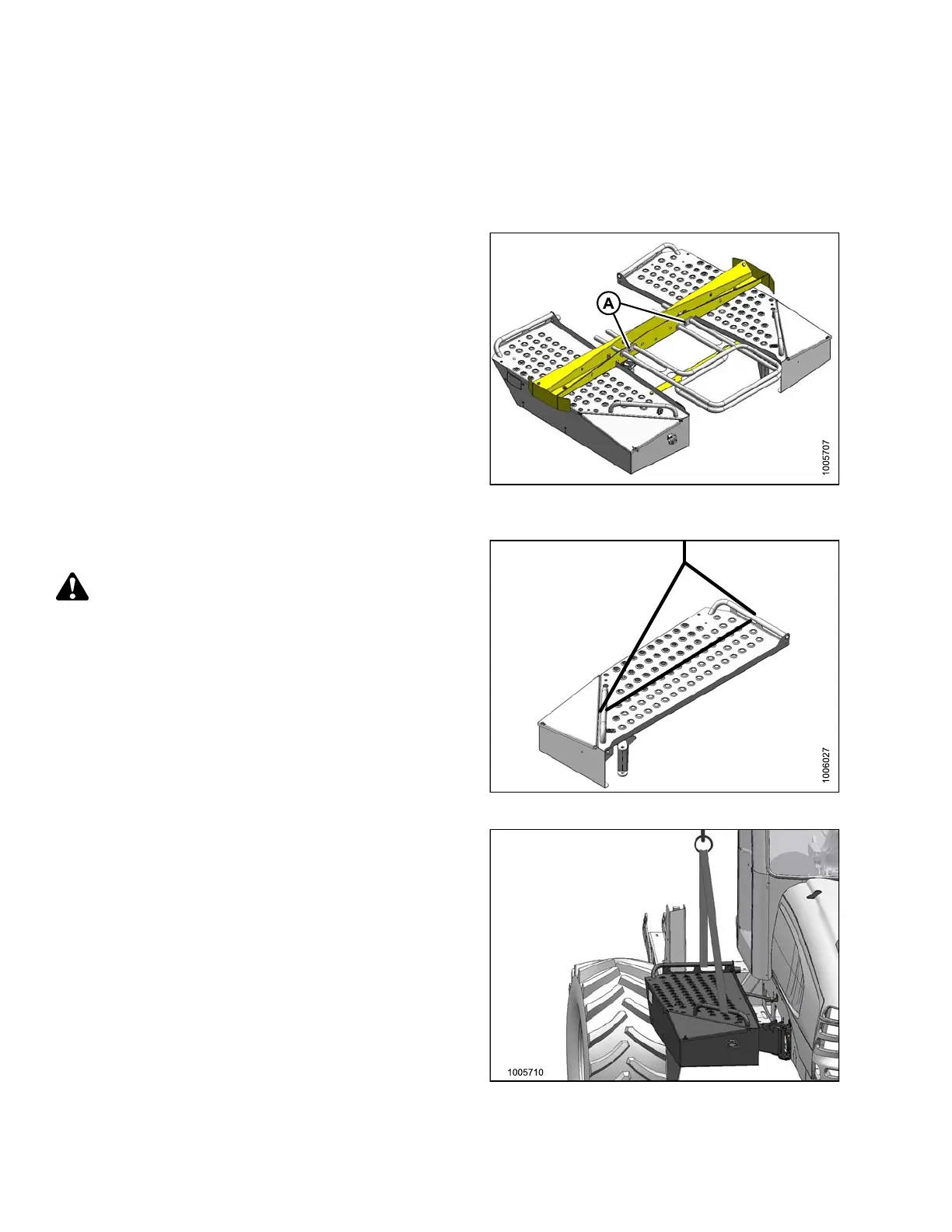

Figure 3.
86: M155 and M205 Platform Shipping
Assembl
y
3. Attach one end of a sling to the pla tform an d the other
endtoaliftingdevice.
DANGER
To avoid injury or death from fall or swinging of raised
load, keep all bystanders clear when lifting.
Figu
re 3.87: Left-Hand Platform
4. Position the platform against the windrower frame.
Fi
gure 3.88: Left-Hand Platform
147962 64 Revision A
