CAB DISPLAY MODULE (CDM)
CAUTION
Check to be sure all bystanders have cleared the area.
7. Press SELECT (E) until KN IFE D RIVE SPD XXXX is
displayed on the upper line.
IMPORTAN T:
Do NOT over-speed the knife drive.
8. Press and hold HAZARD (C) button.
• Press left (B) arrow to decrease knife speed.
• Press right (D) arrow to increase knife speed.
Verify the knife drive is functioning properly.
9. Release the HAZARD (C) button. The knife will stop.
10. Press PROGRAM (A) to exit Programming Mode or
press SELECT (E) to proceed to next ACTIVATE
FUNCTION.

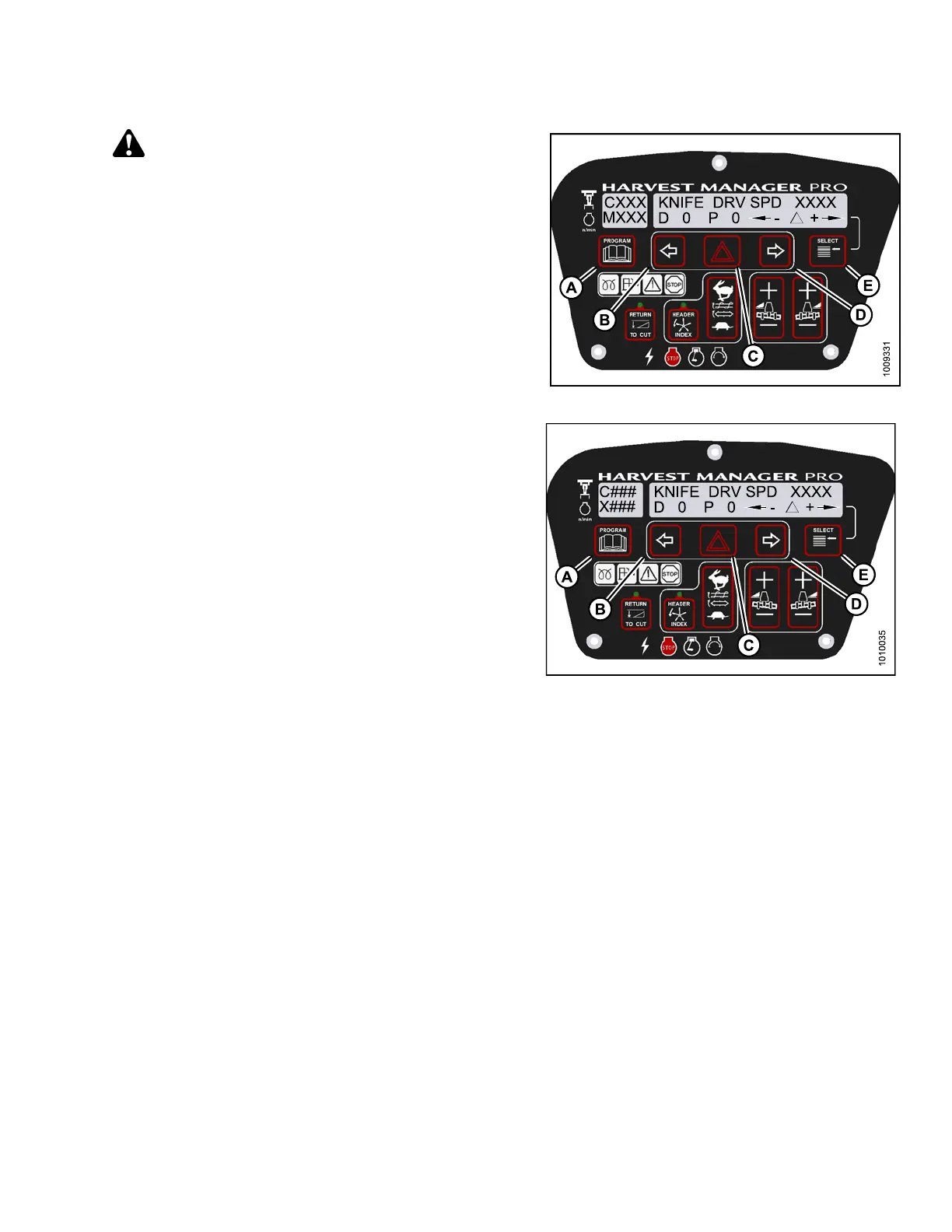

Figure 4.348: M155 Knife Drive
Figure 4.349: M205 Knife Drive
4.8.10 Testing the Draper Drive C ircuit Activate F unction Using the Cab
Display Module (CDM)
IMPORTAN T:
Do not over-speed a drive. Over-speeding can lead to vibration, belt failures, or other over-speeding related
problems.
NOTE:
• A draper header MUST be attach ed to windrower to follow this procedure.
• The engine MUST be running to perform this procedure.
