UNLOADING THE WINDR OW ER
2.6 Removing Hand R ails and Exhaust Stack
1. Cut the plastic cable ties and move the hose bundle
clear of the platform.

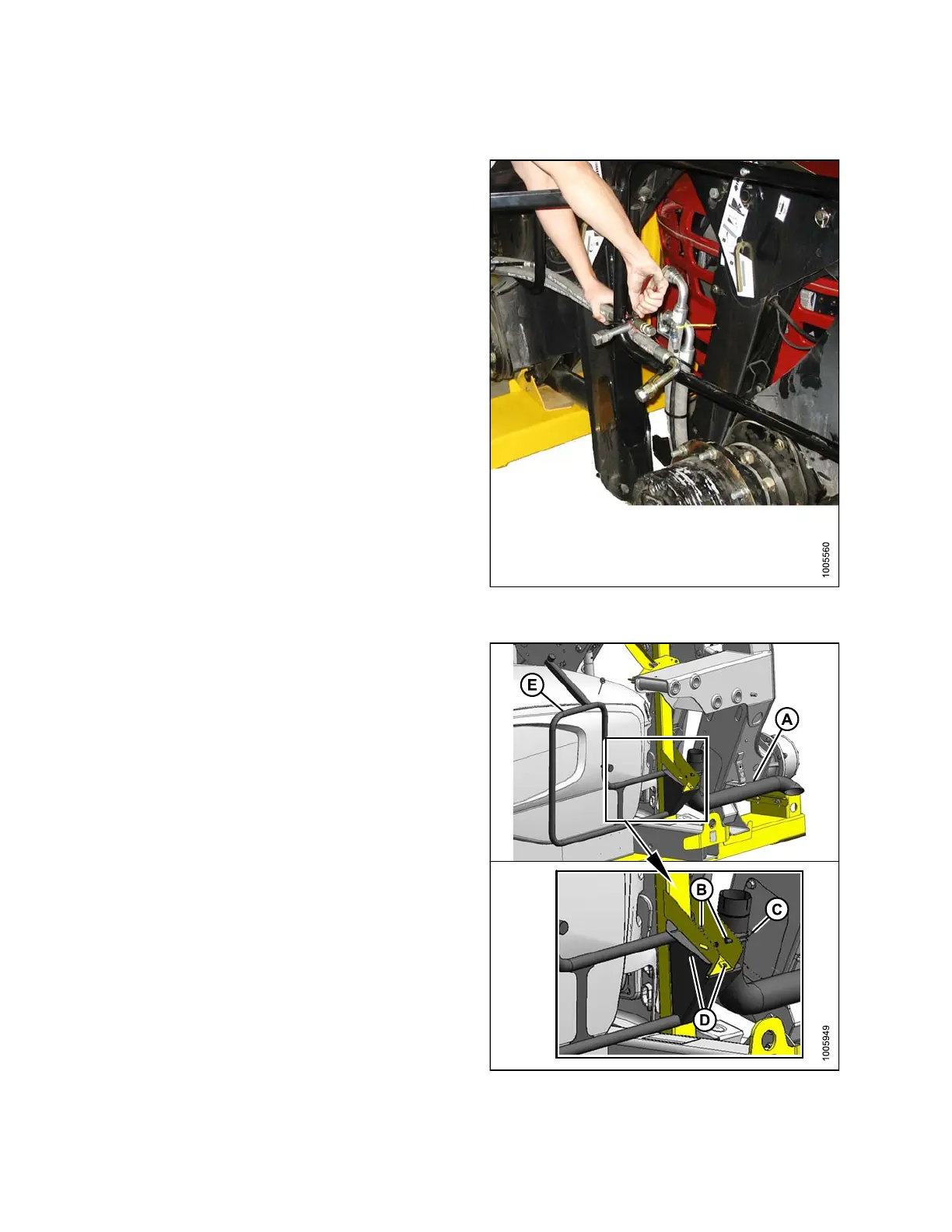

Figure 2
.25: Hand Rails and Exhaust Stack
Shippin
g Assembly
2. Remove shipping wire and foam from the exhaust
stack (A).
3. Remo ve nuts (B) from clamp (C), and remo ve the
exhaust stack (A) and clamp from the shipping frame.
4. Reinstall nuts (B) onto clamp (C) and set exhaust
stack (A) aside for later installation.
5. Remo ve the two bolts (D) securing the hand rail (E) to
the shipping frame, and remove the hand rail.
6. Repeat for the other hand rail on the opposite side.
Retain hardware.
7. Set parts a s ide for later installation.
Figure 2.26: Hand Rails and Exhaust Stack
Shipping Position
147962 20 Revision A
