ASSEMBLING THE WINDROWER
3.14 Priming Hydraulic System
Air must be removed from the system for the hydraulics to perform properly. The following procedure describes the
method for priming the hydraulic system to remove trapped air. Prime the hydraulics after initial installation or if
the hydraulic system requires adjustment.
The procedure for priming the h ydraulic system is different for each windrower mo del. Refer to the following
procedures according to your specific model:
• 3.14.1 Priming Hydraulic System on an M205, page 75
• 3.14.2 Priming Hydraulic System on an M155, page 76
• 3.14.3 Priming Hydraulic System on an M105, page 80
3.14.1 Priming Hydraulic System on an M205
1. Open the left-hand (cab-forward) platform.
2. Disconnect the brake engage solenoid plug (P44) (A)
at the multifunction block on the left-hand side of
the windrower.
3. Open the engine compartment hood to the highest
position. For instructions, refer to the windrower
operator’s manual or the windrower technical manual.

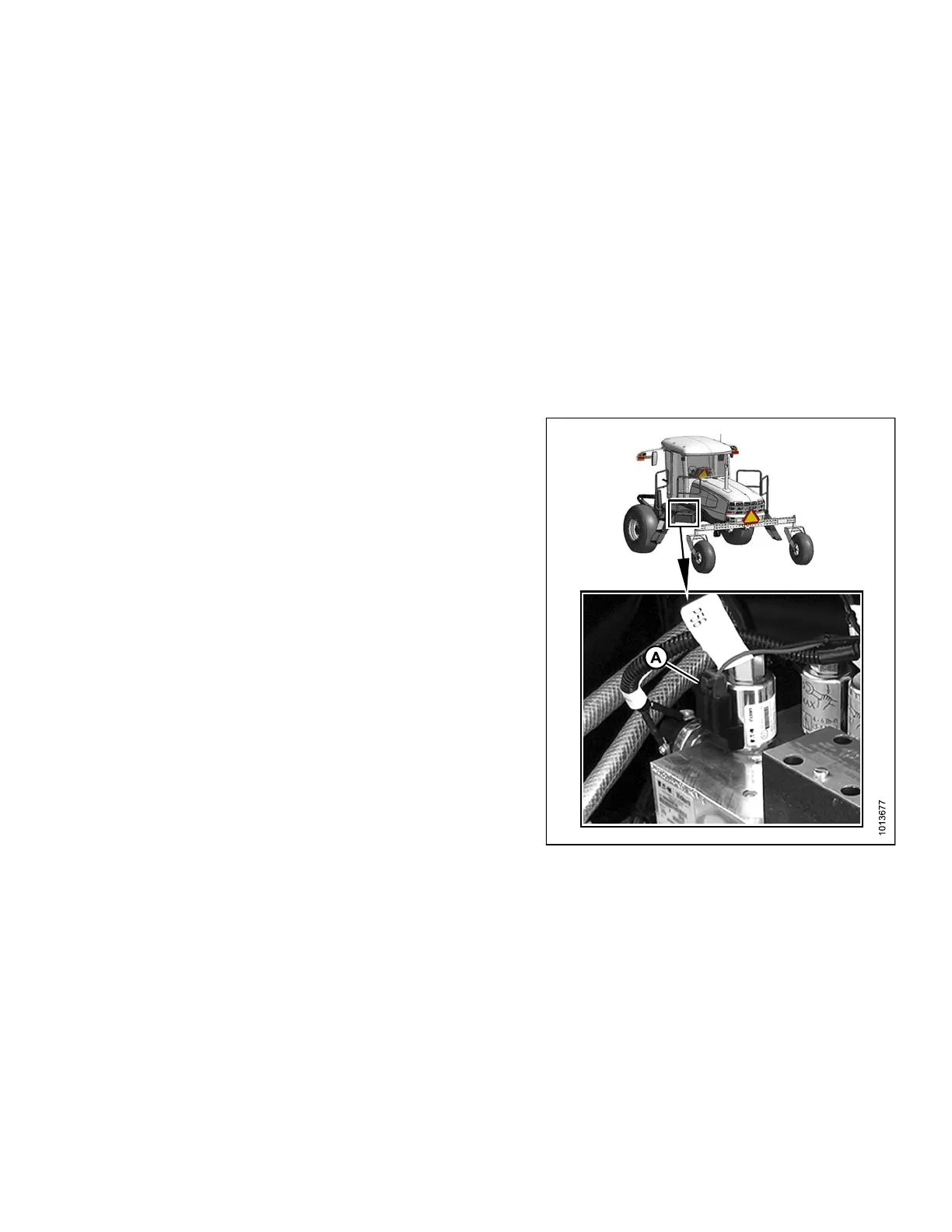

Figure 3.111: Brake Engage Solenoid
147962 75 Revision A
