ASSEMBLING THE W INDROWER
1. Open the engine compartment hood to the highest
position. For instructions, refer to the w indrower
operator’s manual or the windrower technical manual.
2. Ensure battery switch (A), located on the battery tray,
is switched to POWER OFF position.
3. Remove the cable ties securing the battery clamps and
cables to the frame.
IMPORTANT:
Batteries are negative grounded.Always
connect red starter cables to the positive (+)
terminals of the batteries and black ground
cables to the negative (-) terminals of the
batteries. Reve rsed polarity in the batteries or
alternator may result in permanent damage to
the electrical system.
NOTE:
Ensure tha
t batteries are positioned with the
positive
posts (C) facing forward.
4. Remo ve th
e plastic caps from th e battery posts.
5. Attach th
e red positive (+) cable terminals to the
positive
posts (C) on the batteries and tighten clamps.
Reposit
ion plastic covers onto clamps.
6. Attach t
he black negative (-) cable terminals to the
negativ
e posts (B) on the batteries and tighten clamps.
Reposit
ion plastic covers onto clamps.
7. Turn th
e ba tter y switch to the POWER ON position.
8. Close t
he engine compartment hood.

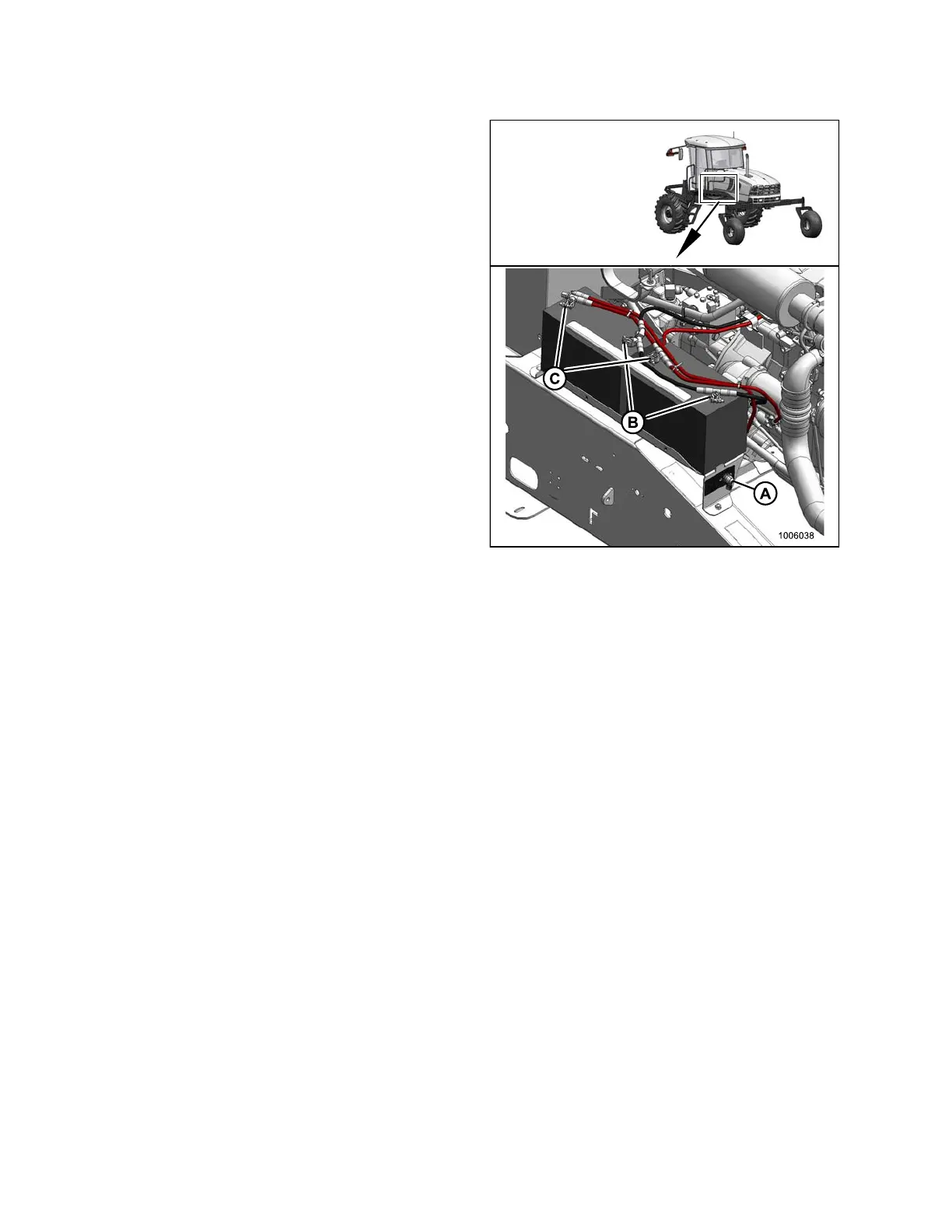

Figure 3
.110: B atteries
147962
74
Revision A
