ASSEMBLING THE WINDROWER
19. Retrieve the two motor case drain hoses (MD #111312)
at the front frame and the 22 mm (7/8 in.) tee fitting on
the hose (C) from the pump.
20. Remove ca p s from the hoses (B) only.
21. Remove one cap from tee fitting (A), a nd quickly attach
hose (B) to m inimize oil spillage.
22. Remove second cap from tee fitting (A), an d quickly
connect other hose (B).
23. Tighten fittings.
24. Position hoses into fram e.

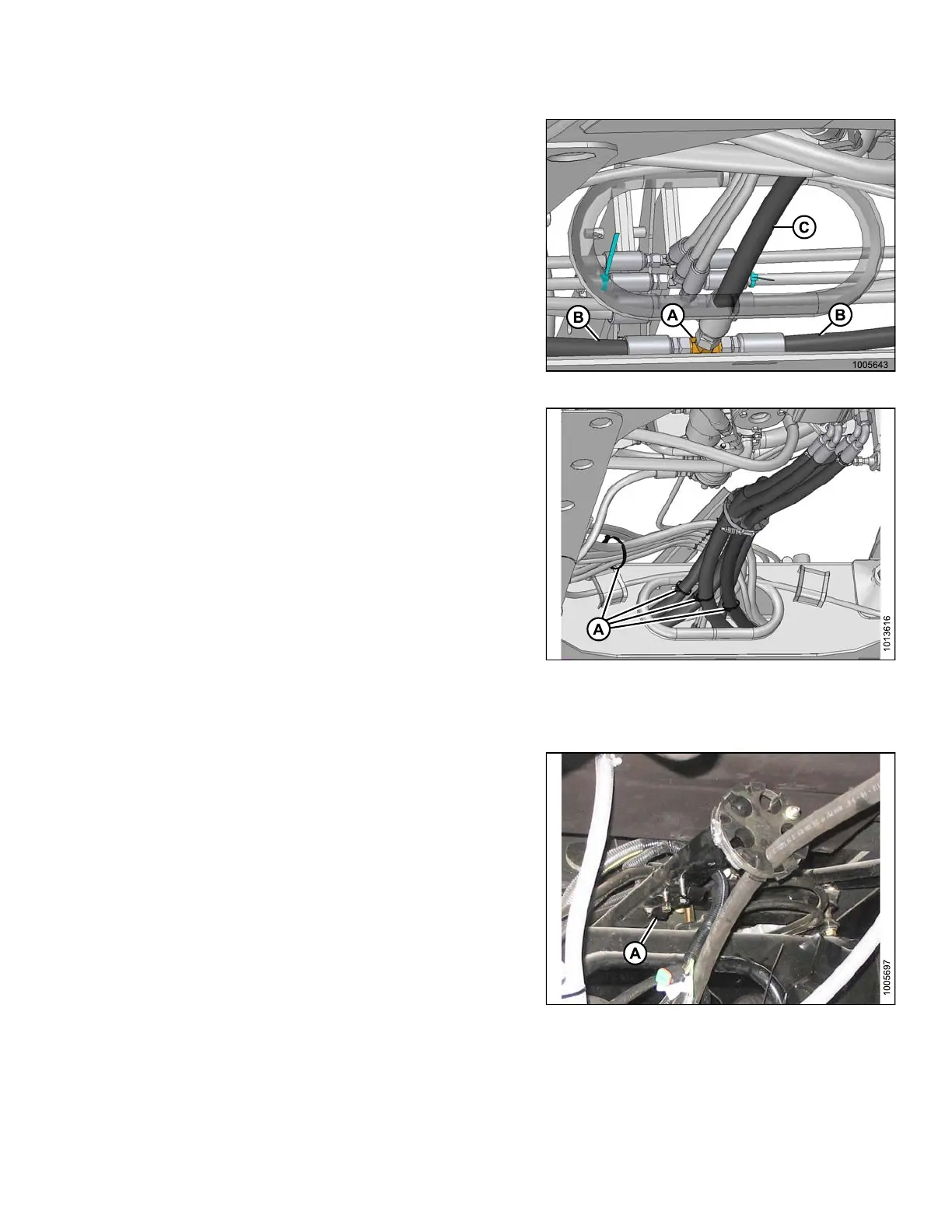

Figure 3.34: Hose Routing
25. Secure hoses with cable ties (A) as required.
Figure 3.35: Hose Routing
3.6.2 Installing Hydraulics o n a n M155
1. Locat
e hose clip (A) under the cab and remove the clip.
Figure 3.36: Hose Clip
147962 43 Revision A
