CAB DISPLAY MODULE (CDM)
4.8.4 Testing
the K nife Drive Circuit Activate Function Using the Cab
Display Modul
e (CDM) on an M105
NOTE:
• The header MUST be attached to windrower to perform this procedure.
• The engine MUST be running to perform this procedure.
• Displaying knife drive speed on cab display module (CDM) requires installation of the optional Expansion Module
(MD #B4666). For more information, refer to the windrower operator’smanual or the windrower technicalmanual.
1. Turn ignition key to RUN, or start the engine .
2. Press PROGRAM (A) and SELECT (C) on cab display
module (CDM) to enter Programming Mode.
• WINDROWER SETUP? is displayed on the
upper line.

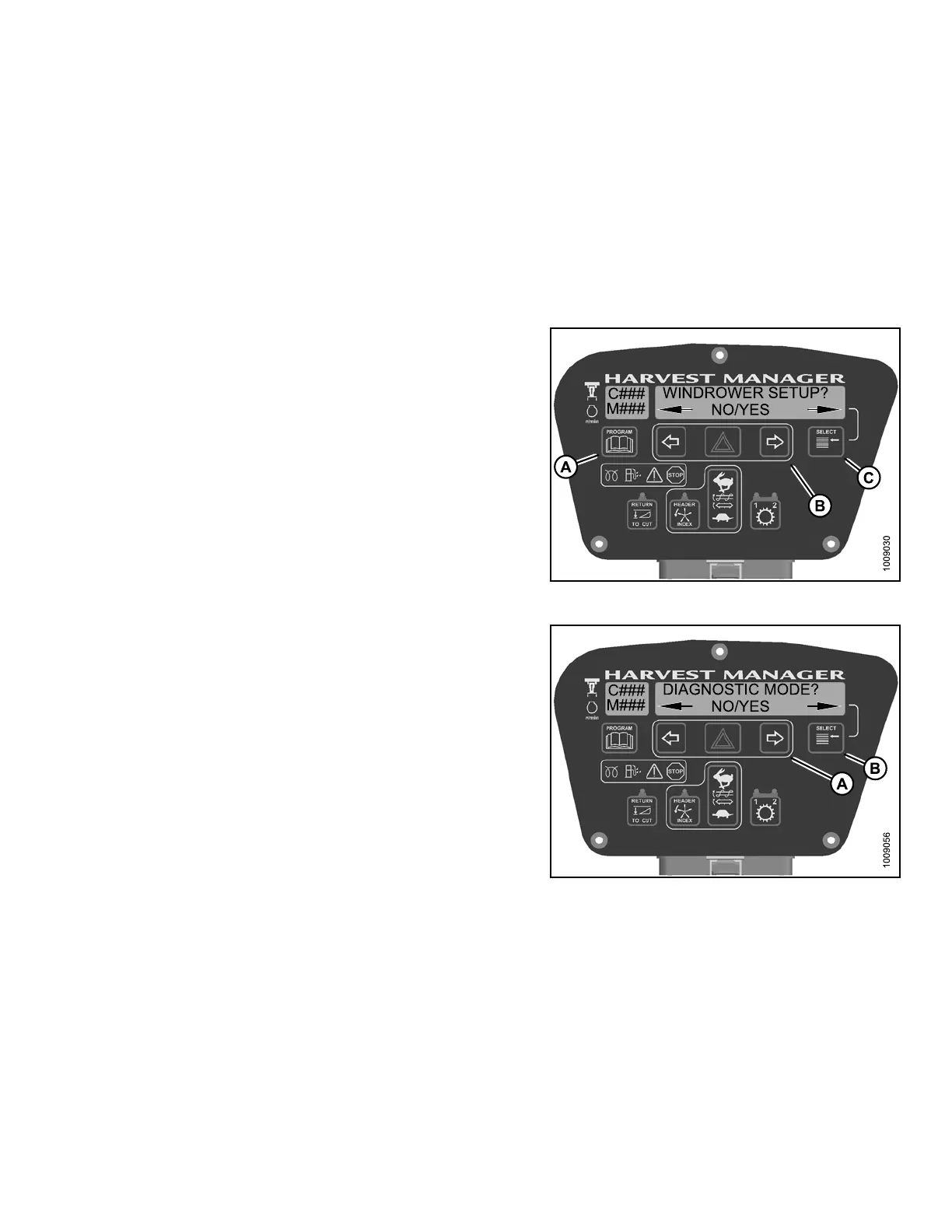

Figure 4
.303: CDM Programming Buttons
3. Press SELECT (B) until DIAGNOSTIC MODE? is
displayed in upper line.
• NO/YES is dis playe d on the lower lin e .
4. Press right (A) arrow to select Yes. Press SELECT (B).
Figure 4.304: Diagnostic Functions
147962 283 Revision A
