2.2 Moving to Assembly Area
The windrower can be moved to the assembly area using either a crane (refer to 2.2.1 Moving to Assembly Area:
Crane Meth od, page 8)oraforklift(referto2.2.2 Moving to Assembly Area: Forklift Method, page 10).
2.2.1 Moving to Assembly Area: Crane Method
CAUTION
To prevent injury to bystanders and avoid striking them with machinery, do NOT allow people to stand in
the unloading area.
CAUTION
Equipment used for unloading m ust meet or exceed the requirements specified in this section. Using
inadequate equipment may result in chain breakage, vehicle tipping, or machine damage.
Lift Sling
Type
MacDon Part #1
63871
1
Maximum Working
Load
12,884 kg (28,404 lb.)
Chain
Type
Overhead 1/2 in.
lifting qu a lity
Minimum Wor
king
Load
3221 kg (7100 lb.)
Lifting Vehicle
Minimum Lifting
Capacity
9072 kg (20,000 lb.)

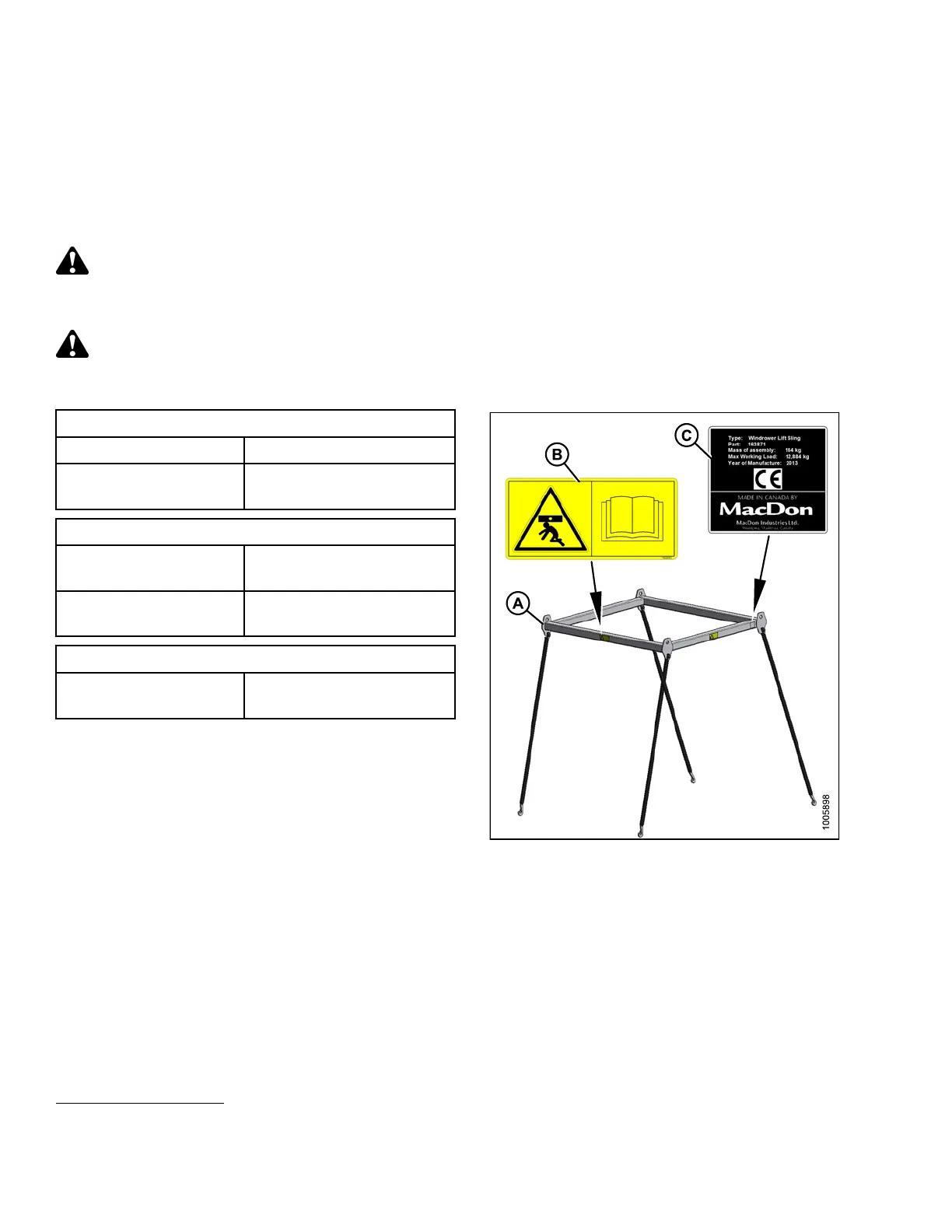

Figure 2.
2: Lift Sling
A - Lift Sling (MD #163871)
B - Decal (MD #183245) (Four Places)
C-Decal(
MD #183248)
1. Not sold separately.
