UNLOADING T HE WINDROWER
1. Attach chains or cables to the four lifting points on the
lift sling (MD #163871), and c onnect the loop ends to
the crane hook.
IMPORTAN T:
Use ca ble s or chain s with a minimum lifting
capacity of 3221 kg (7100 lb.).

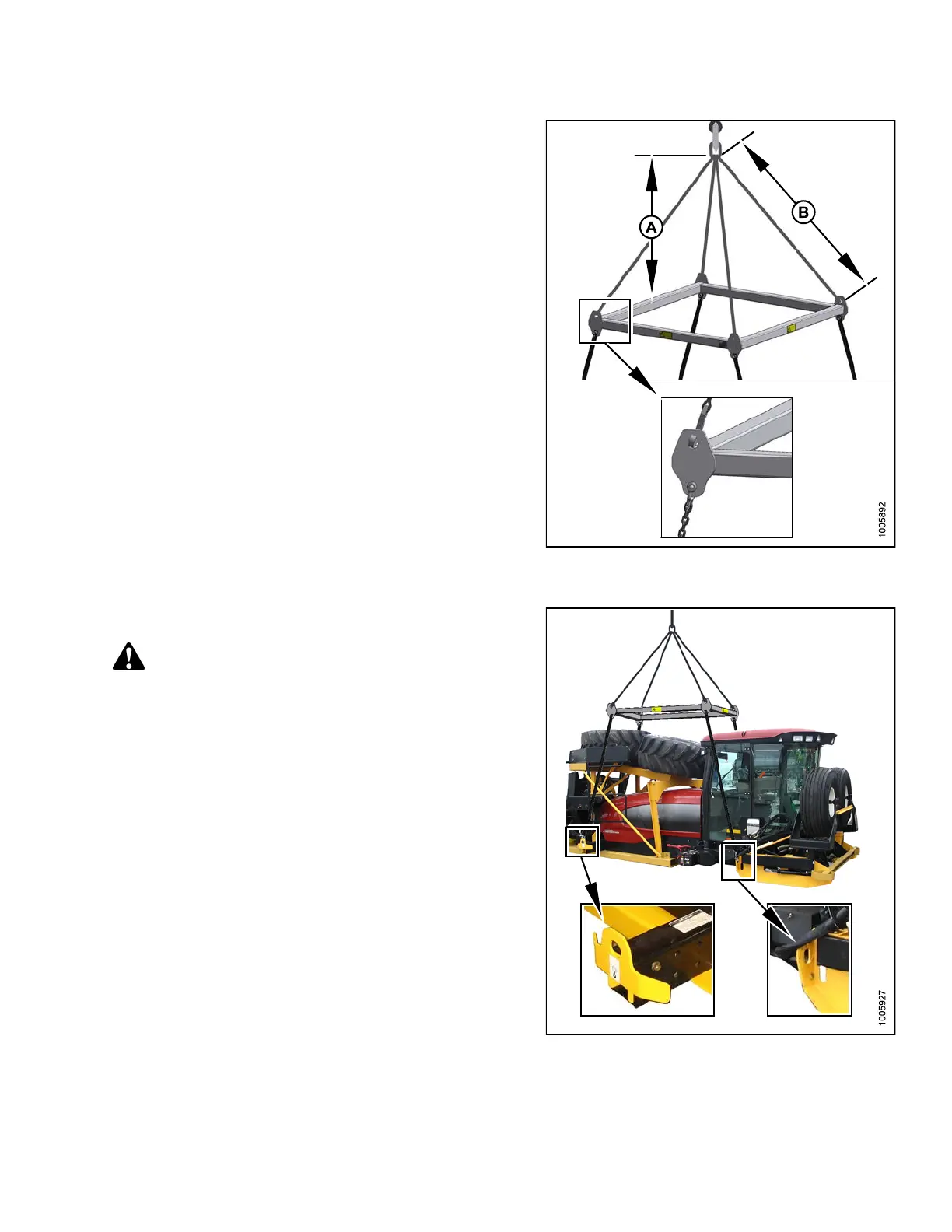

Figure 2
.3: Lift Sling
A - 1500 mm (59 in.) Minimum B - 2120 mm (83.5 i n.) Typical
2. Attach lift sling (MD #163871) to the four designated
lifting points on the windrower shipping frame.
DANGER
To avoid injury or death from a swinging or
falling load, keep all bystanders clear when lifting.
Equipment used for lifting must exceed the maximum
requirements spe cified in this section.
3. Lift the windrower off the platform and m ove to the
setup area.
Figure 2.4: Shipping Frame Lifting Points
147962 9 Revision A
