ASSEMBLING THE W INDROWER
3.10 Installing Steps
NOTE:
The M105 has a left-hand platform only, whereas the M155 and M205 have left- and right-hand platforms.
Procedure for left-hand installation shown—right-hand installation similar.
1. Remo ve the two existing upper bolts (A).
2. Ensure the two lower bolts (B) are not threaded in fully.

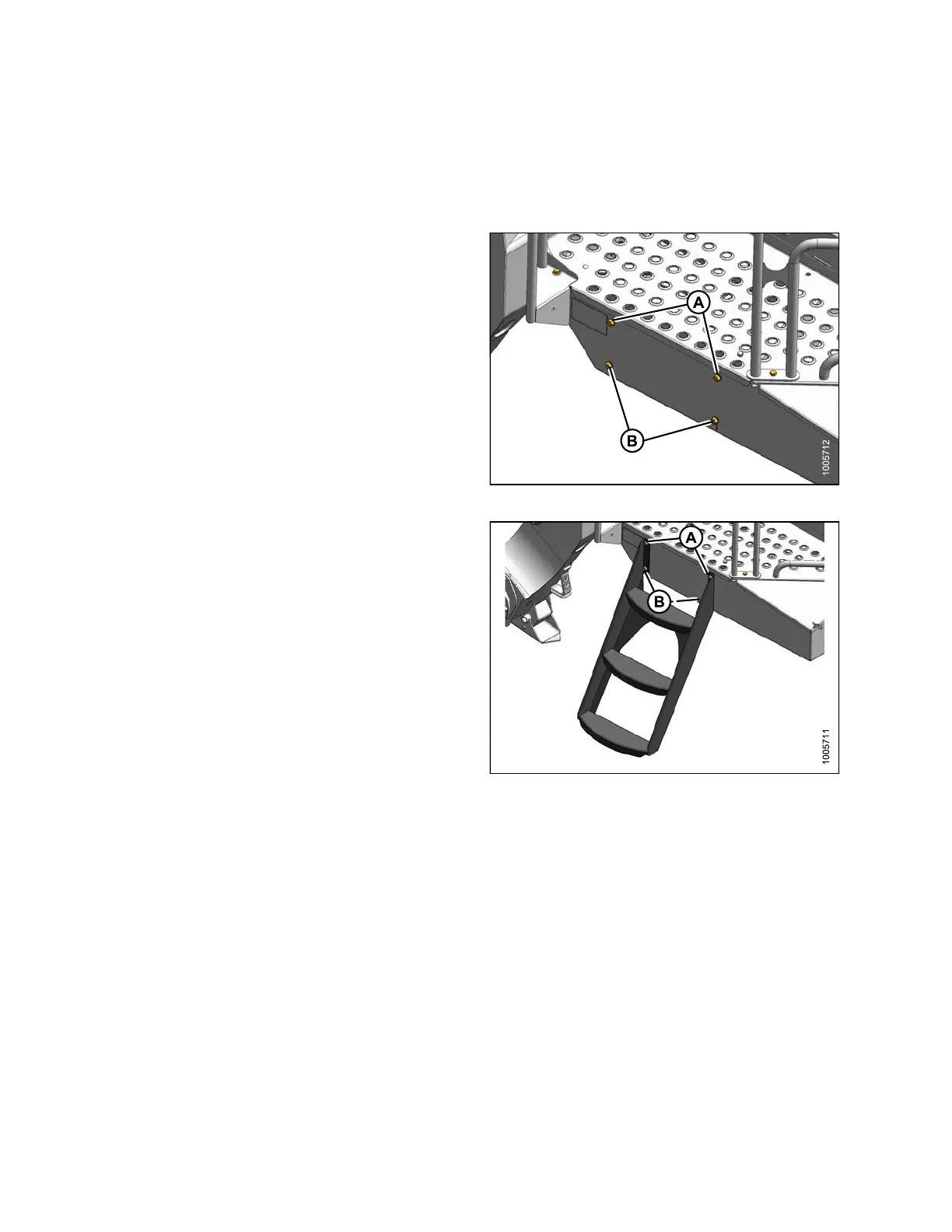

Figure 3.
98: Left-Hand Platform
3. Hang step assembly on lower bolts (B) (back off bolts,
if necessary).
4. Install two bolts (A) in upper holes of step and platform.
5. Torque all bolts to 20 N·m (15 ft·lbf).
6. M155 and M205 only: Repeat for opposite step
assembly.
Figur
e 3.99: Left-Hand Steps Installed
147962 68 Revision A
