ASSEMBLING THE WINDROWER

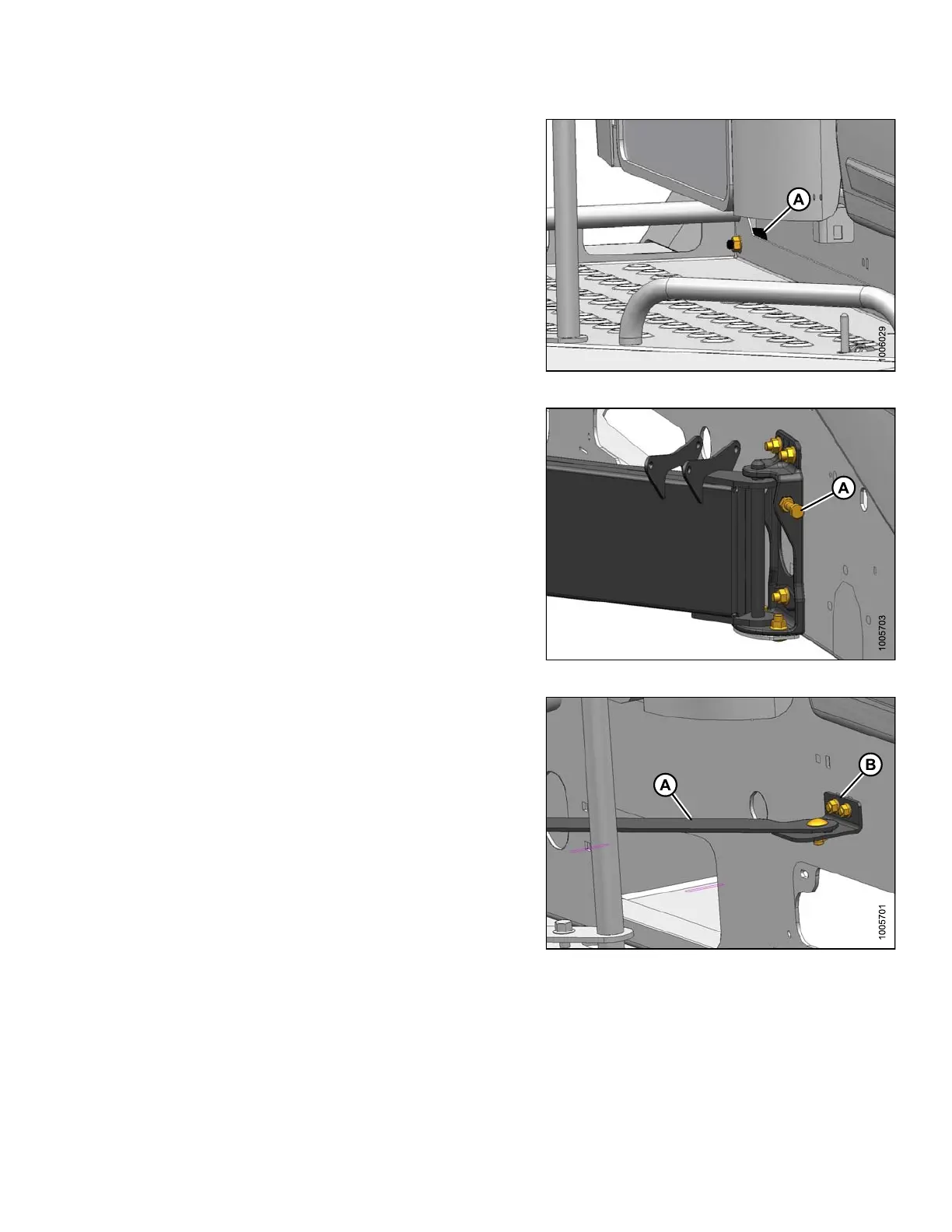

12. Ensure the front of the platform is contacting the
guide (A).
Figure 3.95: Left-Hand Platform – Guide
13. Adjust the platform horizontally with the 1/2 x 2-1/4 in.
bolt (A) as required.
Figure 3.96: Left-Hand Platform – Main Beam
14. Relocate the steering arm (A) into either of the other
holes on t he bracket (B), if ma jor adjustm ent is
required.
15. Tighten the three main beam attachment bolts to
108N·m(80ft·lbf).
16. M155 and M205 only: Repeat procedure to install the
right-hand platform.
Figure 3.97: Left-Hand Platform – Steering Arm
147962 67 Revision A
