ASSEMBLING THE W INDROWER
9. Slowly close the platform and check that the vertical
rail tubes are parallel with the cab posts when viewing
from the rear.

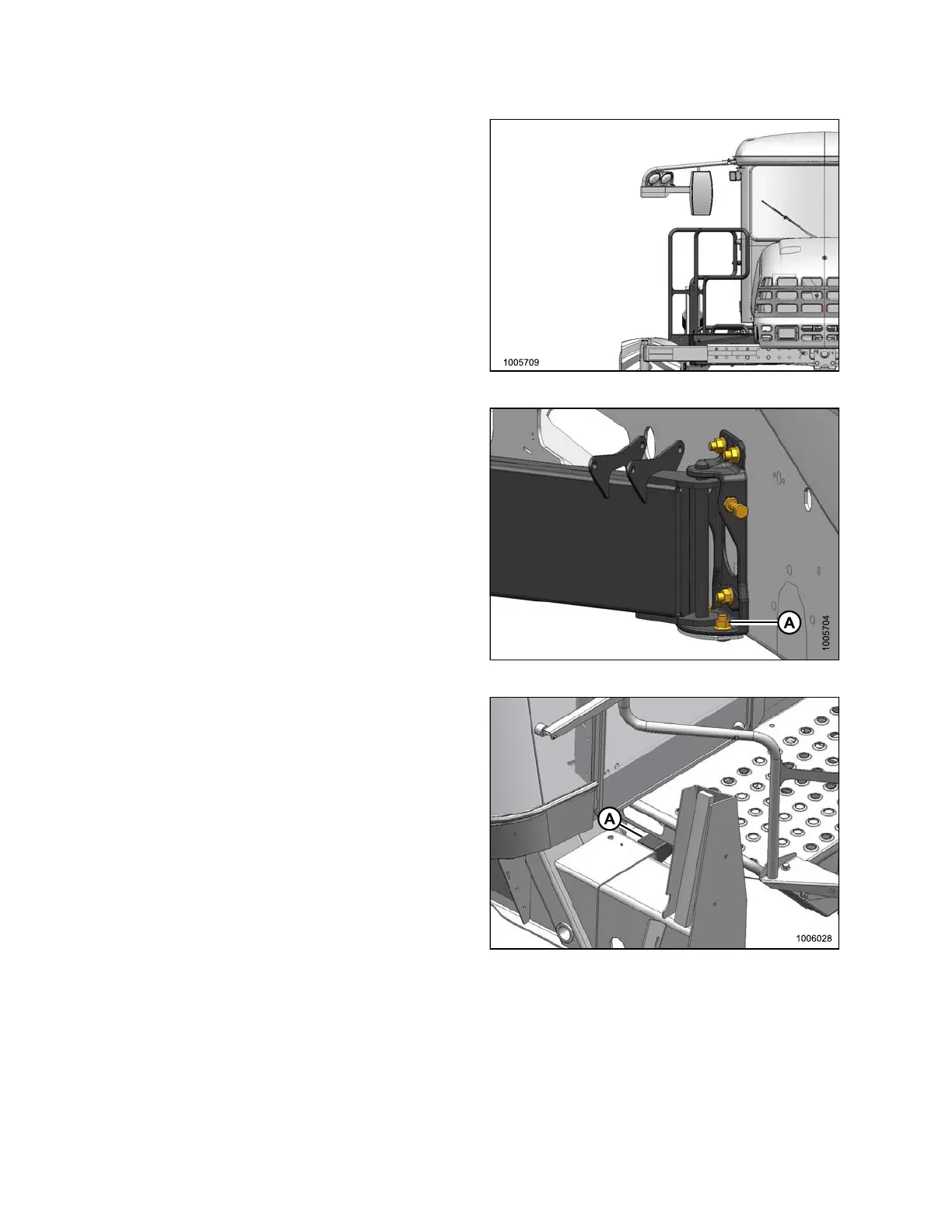

Figure 3 .92: Left-Hand Platform
10. Laterally adjust the king pin mounting (A) as required.
Figure 3.93: Left-Hand Platform – Main Beam
11. Ensure the rubber bumper (A) is contacting the frame.
Figure 3.94: Left-Hand Platform –
Rubber Bumper
147962 66 Revision A
