ASSEMBLING THE WINDROWER

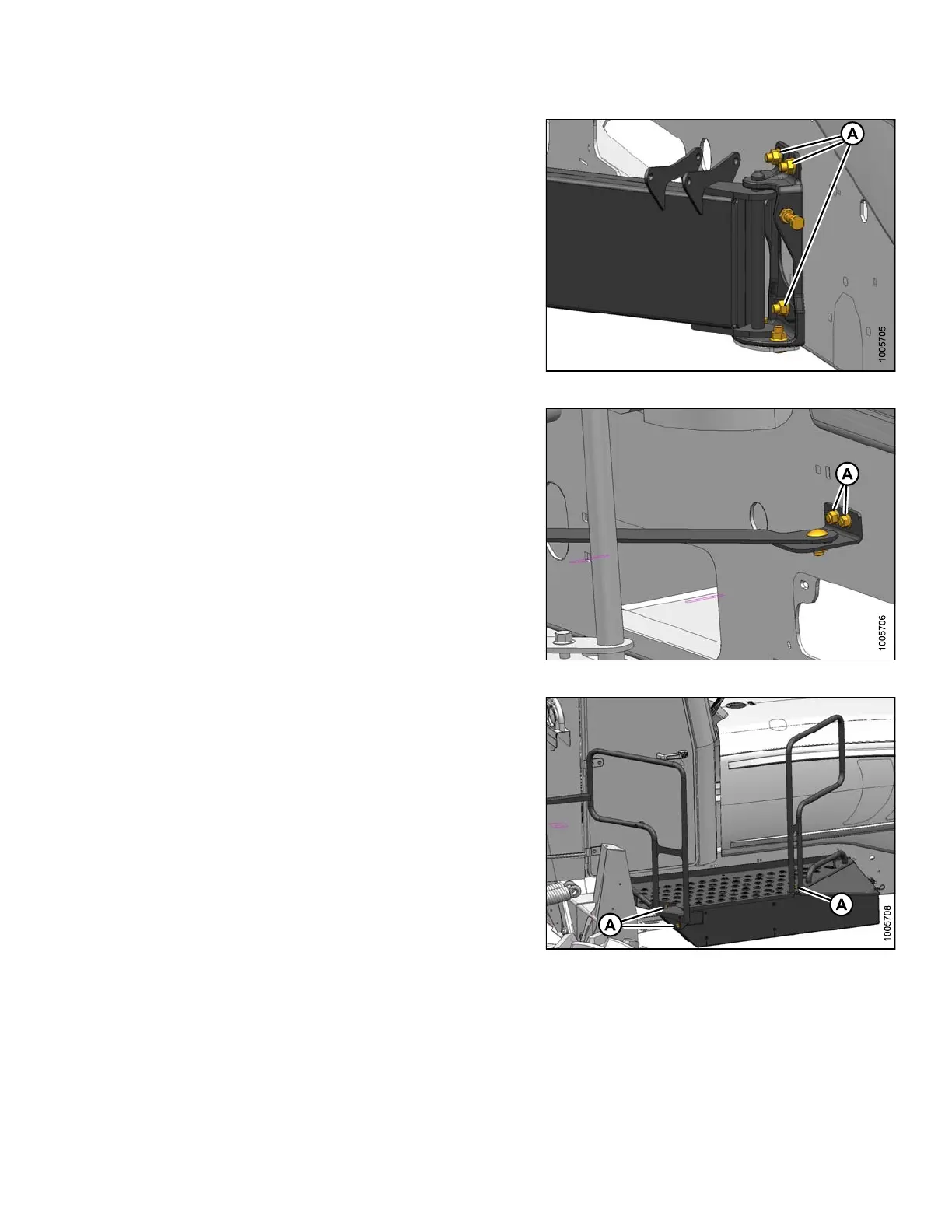

5. Attach the main beam of the platform to the side frame
using three 1/2 x 1-1/4 in. long carriage bolts (A).
Ensure the bolt heads face inboard, and tighten just
enough to permit adjustment.
Figure 3.89: Left-Hand Platform – Main Beam
6. Attach the steering arm to the frame with two
3/8 x 3/4 in. long carriage bolts and nuts (A). Ensure
the bolt heads face inboard, and tighten bolts.
7. Remove sling.
Figure 3.90: Left-Hand Platform – Steering Arm
8. Attach the ra iling s to th e pla tform w ith 1/2 x 3/4 in.
locking bolts (A) provided. Tighten bolts to 102 N·m
(75 ft·lbf).
Figure 3.91: Left-Hand Platform – Railings
147962 65 Revision A
