4.5 Activating Cab Display Lockouts
You can lock some of the header functions controlled by the cab display module (CDM) to prevent accidental
changes to header settings. You can use this feature to keep header settings constant when several different
Operators use the windrower.
NOTE:
FUNCTION LOCKED flashes on CDM when locked header function switch is pressed.
4.5.1 Activ
ating Knife Speed Control Lockout
NOTE:
The header MUST be attached to the windrower to perform this procedure. The cab display module (CDM)
automatically adjusts its programming for each header.
1. Turn ignition key to RUN, or start the engine.
2. Press PROGRAM (A) and SELECT (C) on cab display
module (CDM) to enter Programming Mode.
• WINDROWER SETUP? is displayed on the
upper line.
• NO/YES is displayed on the lower line.
3. Press right (B) arrowto select YE S. PressSELE CT (C).
• SET K NIFE SPEED? is displayed on the upper line.

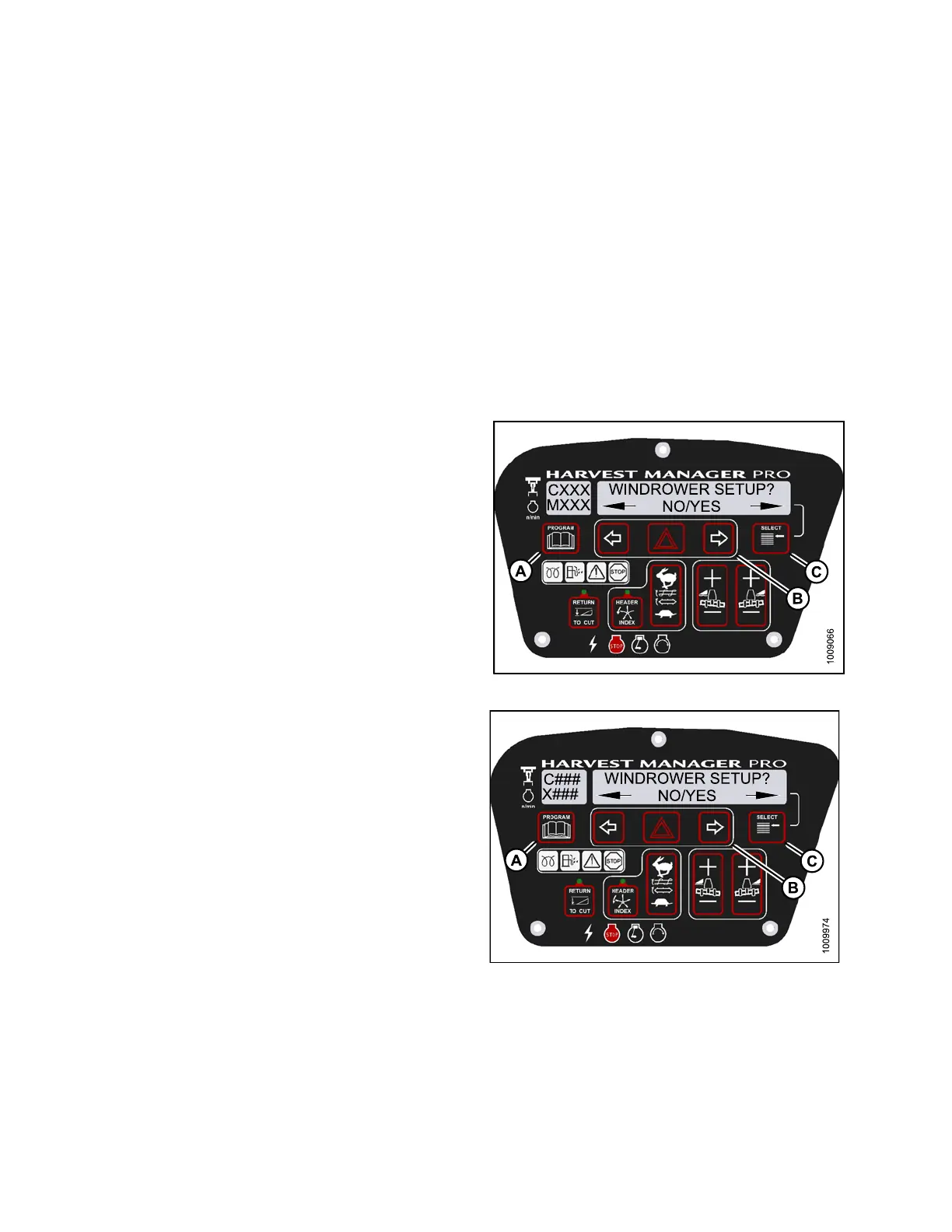

Figure
4.158: M155 CDM Programming Buttons
Figure 4.159: M205 CDM P rogramming Buttons
147962
