PERFORMING PREDELIVERY CHECKS
4. Check the constant torque clamps (A) on the charge
air cooling duct connections at turbocharger outlet and
engine air intake. Hold a 0.46 mm (0.018 in.) gauge
between the middle coils, tighten the clamp until the
gauge is snug, and remove the gauge.

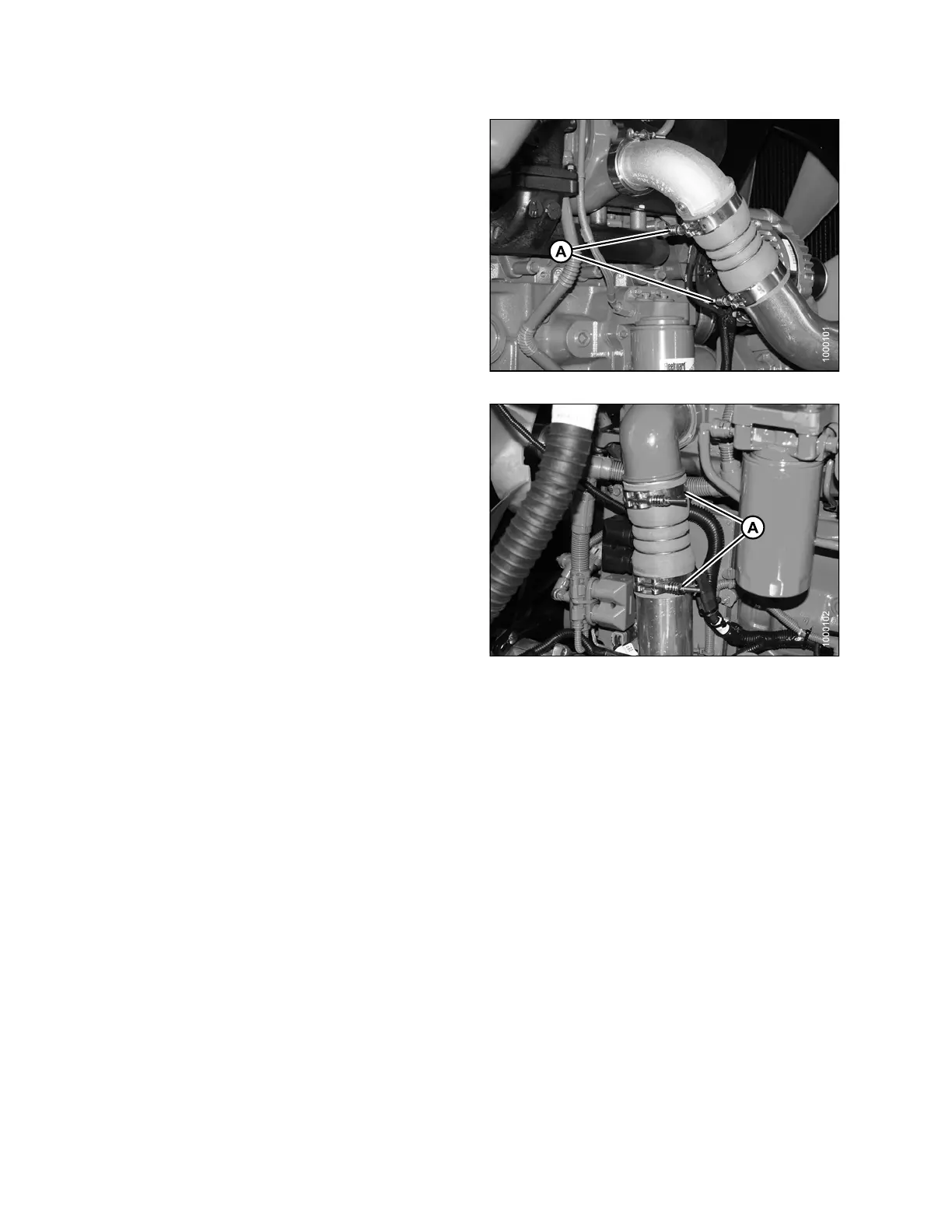

Figure 5 .9: M 205 Air Intake System
Figure 5.10: M205 Air Intake System
147962 326 Revision A
