PERFORMING PREDELIVERY CHECKS
2. M105 and M155 only: Check the constant torque
spring clamp (A) at the back of the air cleaner. Hold a
0.46 mm (0.018 in.) gauge between the middle coils,
tighten the clamp until the gauge is snug, and remove
the gauge.

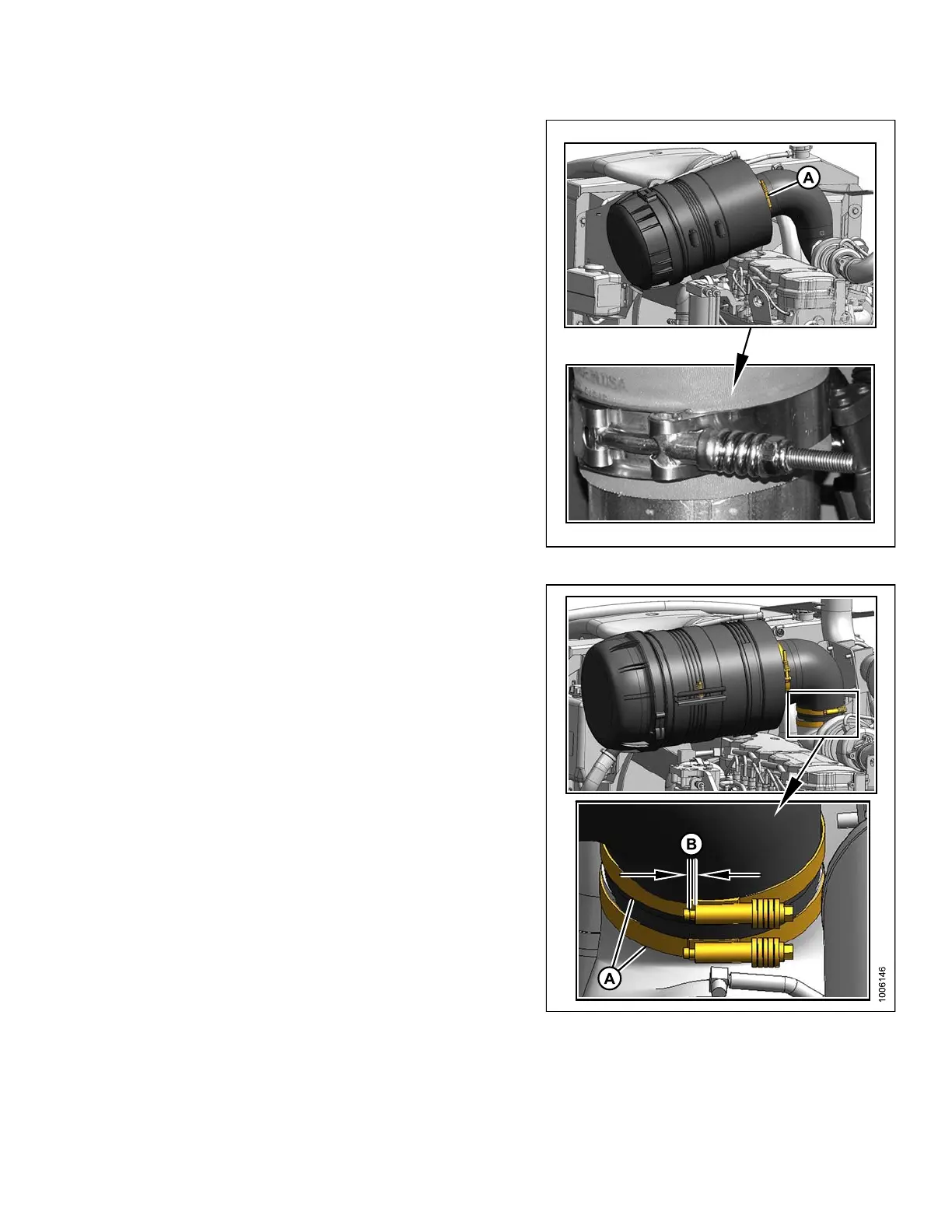

Figure 5.
7: M105/M155 Air Intake System
3. M205 only: Check the constant torque clamps (A)
on the charge air cooling duct connection at the
turbocharger inlet. Tighten constant torque clamps to
achieve a gap (B) of 4 mm +/- 0.5 mm (0.157 in. +/-
0.02 in.).
Figure 5.8: M205 Air Intake System
147962 325 Revision A
